Compressor Air Oil Separator
Product Details
Compressor air oil separator Description
We offers a very large variety of air/ oil separators including pleated media air/ oil separators, deep filter oil separators and spin-on style. Our elements have successfully replaced all major brands of OEM and replacement filters in thousands of applications. And will meet or exceed the specifications and performance of OEM filters.
Technical Data
Item name | Compressor air oil separator |
Life span | 3500-5200 hour |
Filter Precision | 0.1um |
Part number | 2901021301 |
MOQ | 5PCS |
Color | Optional |
Be installed in | Screw compressor |
Application | Air Compressor System |
OD | 168mm |
H | 107mm |
Flange | 230mm |
Material | Glass fiber |

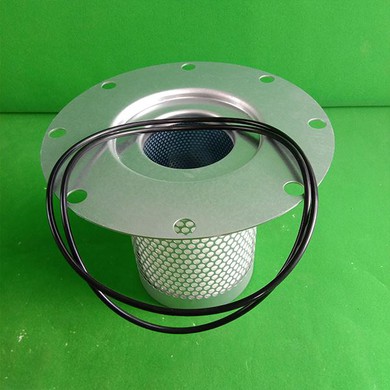

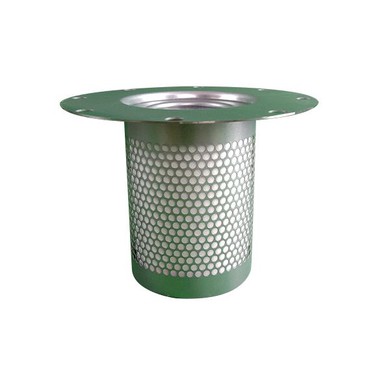

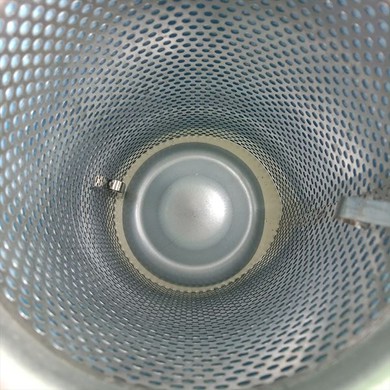

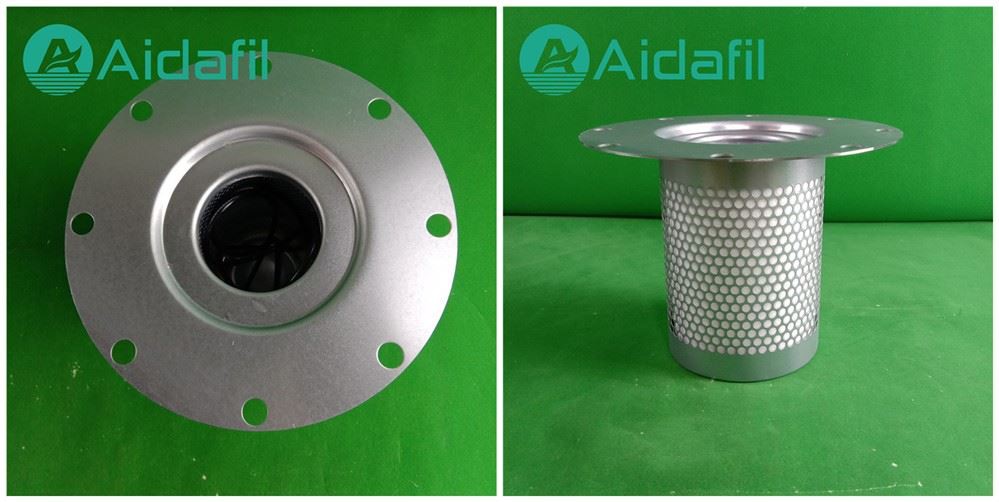

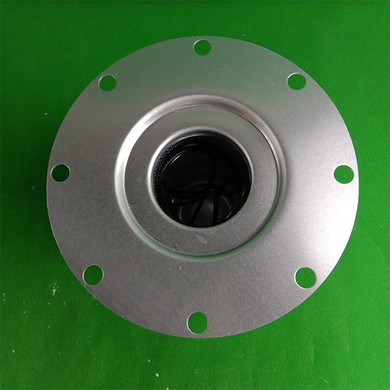

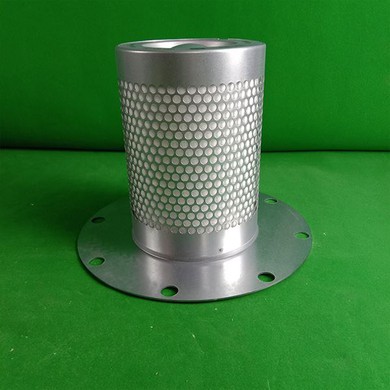

Photo |
|
Advantage
1. We are manufacturer. Welcome to visit our factory anytime.
2. Quality be controlled strictly, Service life is long.
3. Delivery on time.
4. We can produce according to sample or drawing as your request.
5. Rich experience in exporting to Africa, Middle East, USA and Europe etc.
6. Good quality with competitive price.
How to repair or replace compressor air oil separator
1. Open the separator vessel and replace the separator filter.
2. Ensure the new filter is the same size as the old one, should it be longer or shorter. be sure to adjust the length of the scavenge pipe.
3. Ensure to use provided gaskets, as these contain a mental conductor, this prevents static electricity from building up in the separator,
which could cause sparks, which could also lead to a separator vessel explosion.
FAQ
Are there any professional technicians to assist us if any other questions?
A: Yes. We have professional technician. If you have questions. They will support anytime.
Do you accept OEM?
A: Yes. we can produce according to your requirement.
How long is the quality guarantee?
A: It depends on working conditions.
How long is your Delivery Time?
A: Withing 5-7 working days.
What's your packing?
A: Plastic bag/ Bubble film - Carton - Plywood case/ Pallet or according to your requirements.
Can I get some samples?
A: Its our pleasure to offer you samples.
Can you design filters according to the working condition?
A: Yes. We have professional technical department and can design the more suitable filters for you.
