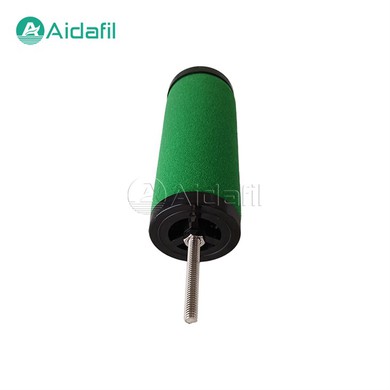

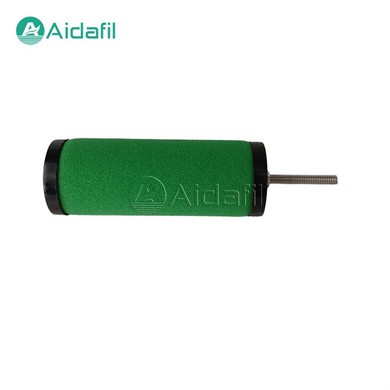

Inline Air Filter Element Cartridge E1-24-IN

The inline air filter element cartridge E1-24-IN is featured by superior filtration. It offers filtration performance that is 10 times better than standard compressed air filters. This is due to its special design and innovative filter media that allows it to capture particles down to 0.01 microns. This filter element E1-24-IN has been designed to operate at pressures of up to 16 bar, making it ideal for use in high-pressure compressed air systems.

The inline air filter element cartridge E1-24-IN has a long service life, thanks to its robust construction and high-quality materials. This makes it a low-cost maintenance option for compressed air systems.

One of the key features of this E1-24-IN filter cartridge is its compressed design, which allows for maximum filtration area in a smaller footprint. This means you can enjoy the benefits of superior filtration without sacrificing valuable space in your facility. The E1-24-IN is compact and easy to install, making it a popular choice for a wide range of industries, including automotive, food and beverage, and pharmaceuticals.

One of our customers operates a large-scale manufacturing facility. They were experiencing a high rate of equipment failure due to contaminated compressed air supply. After installing the Inline Air Filter Element Cartridge E1-24-IN, they have seen a significant decrease in equipment failure rates and an increase in overall efficiency.

Advantage & Feature

· Heat temperature resistance

· Corrosion resistance

· Low airflow resistance

· High mechanical strength

· Better technology and best materials.

· Strong technical support and good command of manufacturing process

· Each piece is tested in accordance with high international standard.

· Easy to put up and replace

· Lead time is shorter.

Parameter

· Part Number: E1-24-IN

· Filter Type: Compressed inline filter

· Filtration Material: Glass fiber, filtration paper, activated carbon

· Filtration Efficiency: 99.9999%

· Change Interval: 12 months

· Working temperature: -10 ~ 80°C

· Flow rate (m³/min/0.7mpa): 3

· Filter diameter (mm): 60.5

· Filter height (mm): 167

· Filtration accuracy: 0.01μm

· Maximum remaining oil content: 0.003ppm w/w

Application

· Industrial manufacturing machine

· Food and beverage

· Automotive

· Electronics

· Pharmaceuticals

· Medical and dental usage

· Petroleum

· Metallurgy

FAQ

Q: Are you factory or trading company?

A: We’re factory with many years designing and manufacturing experiences.

Q: Will you provide samples?

A: Yes, but you need to pay for freight cost.

Q: Can i make the payment online?

A: Yes. You can direct make an order and pay it through Alibaba.

Q: Do you have warranty?

A: The filter’s warranty is one year. When it starts work, the lifetime depends on the working

environment (like pressure, temperature, and particle /dust content etc)

Q: May you do OEM Service?

A: Yes.
