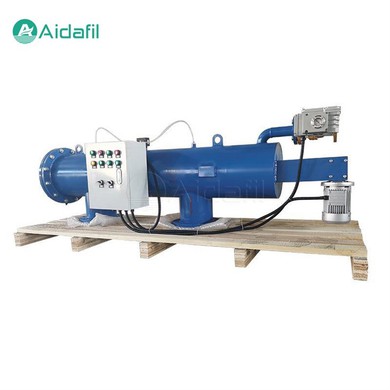

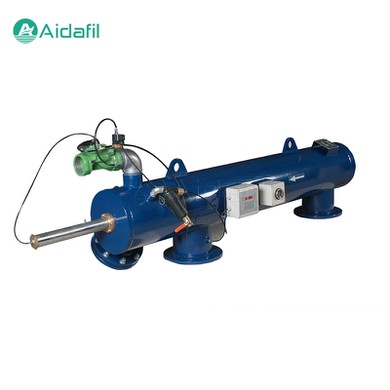

Highly Efficient Horizontal Self-Cleaning Filter

The highly efficient horizontal self-cleaning filter marks an efficient automatic cleaning filter device used to filter out particulate impurities in raw water. The filter accepts raw water through the water inlet, and uses the internal filter screen to filter. After intercepting the particulate impurities, the clean water flows out from the water outlet. This process not only ensures the purification of water quality, but also improves the filtration efficiency.

Basic steps of filtration

1. Feed stage. In this stage, a mixture containing solid particles (i.e. the suspension to be treated) is injected into the feed port of the horizontal self-cleaning filter. This is the starting point of the filtration process.

2. Filtration process. After the mixture enters the filter through the feed pipe, it passes through the filter medium, which is usually composed of pores of different sizes. Its function is to allow liquid to pass through while preventing solid particles from passing through.

3. Solid-liquid separation. During the filtration process, the liquid automatically passes through the pores of the filter medium, while the solid particles are trapped on the filter medium by the filter screen, thus achieving solid-liquid separation.

4. Discharge discharge. The filtered liquid flows out of the discharge port of the filter, at which point most or all of the solid impurities have been removed, while the solid particles remain on the filter medium to form a solid layer, which helps to enhance the filtration effect.

Parameters

Advantages

1. Efficient and Energy-Saving. Employing backwashing methods, cleaning is highly efficient, water consumption is low, and the backwash pump operates at low power, resulting in low energy consumption.

2. High Filtration Precision. Different precision filtration elements can be selected as needed to meet various fine filtration demands.

3. Automatic Operation. Entirely automated control reduces human intervention, lowers labor intensity, and enhances work efficiency.

4. Stable and Reliable. The equipment is compact, made of high-quality materials with strong corrosion resistance, runs stably, and has a long service life.

5. Easy Maintenance. Modular design allows for easy filter cylinder replacement, coupled with fault alarm functionality, facilitating routine maintenance and fault diagnosis.

Application

The highly efficient horizontal self-cleaning filter is used in a wide range of applications, covering a wide range of industries and fields.

1. Industrial application

- Chemical and pharmaceutical production. In these industries, horizontal self-cleaning filters are used to remove solid impurities, particulate matter, and microorganisms from liquids produced during the production process to ensure the quality and safety of the final product.

- Food and beverage production. In the process of food and beverage processing, horizontal self-cleaning filters are used to improve the taste and quality of products, by efficiently filtering out impurities, suspended solids, and microorganisms in liquids, thereby enhancing product quality and safety.

- Electronics and semiconductor industries. This field requires extremely high purity and quality of liquids. Horizontal self-cleaning filters can efficiently filter out particles, metal ions, and other impurities in liquids, ensuring high product quality and reliability.

2. Environmental protection and water treatment

- Sewage treatment. Horizontal self-cleaning filters play an important role in the treatment of domestic wastewater, hospital wastewater, and aquaculture wastewater, effectively removing suspended solids, organic matter, and harmful microorganisms in the water, ensuring water quality safety and meeting discharge standards.

- Wastewater reuse. In the industrial and civil fields, horizontal self-cleaning filters are used to improve the quality of wastewater to meet the requirements of reuse, which not only helps protect water resources, but also promotes the sustainable development of the environment.

- Drinking water treatment. Horizontal self-cleaning filters are used to filter out particulates, organic matter, and microorganisms in drinking water, improving the quality of drinking water and safeguarding public health.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
