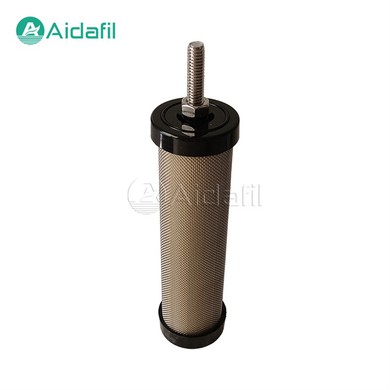

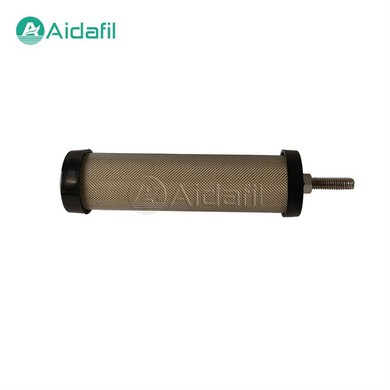

Efficient Compressed Air Precision Filter E9-20-IN

The Efficient Compressed Air Precision Filter E9-20-IN is designed to remove impurities and contaminants from compressed air systems, ensuring that your equipment runs smoothly and efficiently. With a maximum operating pressure of 16 bar, the E9-20-IN is capable of handling even the most demanding industrial applications. The filter element offers a high filtration level, ensuring that even the smallest particles and impurities are removed from the compressed air system.

The Efficient Compressed Air Precision Filter E9-20-IN is highly energy-efficient, with a low pressure drop that reduces the energy consumption of the compressed air system. It is much more durable and reliable than other filter elements, with a long service life that minimizes maintenance and replacement costs.

This Efficient Compressed Air Precision Filter has a wide range of applications across various industries, including food and beverage, pharmaceuticals, electronics, and automotive. It is particularly useful in processes that require clean compressed air, such as painting, sandblasting, and packaging.

One of the customer cooperation case studies of the E9-20-IN was in a food and beverage manufacturing plant that had been experiencing significant contamination issues with their compressed air system. After installing the E9-20-IN, the plant was able to completely eliminate their contamination problems, ensuring that their products met the highest quality standards.

Advantage & Feature

· Heat temperature resistance

· Corrosion resistance

· Low airflow resistance

· High mechanical strength

· Better technology and best materials.

· Strong technical support and good command of manufacturing process

· Each piece is tested in accordance with high international standard.

· Easy to put up and replace

· Lead time is shorter.

Parameter

· Part Number: E9-20-IN

· Filter Type: Compressed inline filter

· Filtration Material: Glass fiber, filtration paper, activated carbon

· Filtration Efficiency: 99.9999%

· Change Interval: 12 months

· Working temperature: -10 ~ 80°C

· Flow rate (m³/min/0.7mpa): 2

· Filter diameter (mm): 42.5

· Filter height (mm): 150

· Filtration accuracy: 3μm

· Maximum remaining oil content: 5ppm w/w

Application

· Industrial manufacturing machine

· Food and beverage

· Automotive

· Electronics

· Pharmaceuticals

· Medical and dental usage

· Petroleum

· Metallurgy

FAQ

Q: Are you factory or trading company?

A: We’re factory with many years designing and manufacturing experiences.

Q: Will you provide samples?

A: Yes, but you need to pay for freight cost.

Q: Can I make the payment online?

A: Yes. You can direct make an order and pay it through Alibaba.

Q: Do you have warranty?

A: The filter’s warranty is one year. When it starts work, the lifetime depends on the working

environment (like pressure, temperature, and particle /dust content etc)

Q: May you do OEM Service?

A: Yes.
