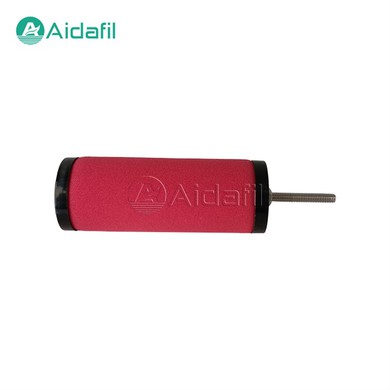

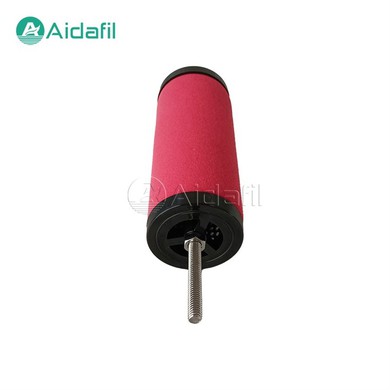

High Precision Inline Filter Element E5-24-IN

High Precision Inline Filter Element E5-24-IN is designed from high-quality materials and incorporates advanced filtration technology. The filter element is also resistant to corrosion and can withstand high temperatures and harsh environments.

The E5-24-IN filter element is built with a modular design, which allows for easy installation and maintenance. It also features a compact size, which makes it ideal for use in areas where space is limited. This filter element is designed for inline installation, which means that it can be easily integrated into existing filtration systems.

The high precision inline filter element E5-24-IN is built to meet the highest standards of filtration performance. It has a filtration rating of 0.1-5um, which ensures that it can effectively remove even the smallest impurities from fluids. This means that the filter element can help to improve the overall quality of fluids used in industrial processes, which can lead to better product quality and improved efficiency.

This filter element E5-24-IN has many applications in various industries. It is ideal for filtering water, chemicals, and other liquids. It is also used in the oil and gas industry, pharmaceuticals, and other industrial applications.

Advantage & Feature

· Heat temperature resistance

· Corrosion resistance

· Low airflow resistance

· High mechanical strength

· Better technology and best materials.

· Strong technical support and good command of manufacturing process

· Each piece is tested in accordance with high international standard.

· Easy to put up and replace

· Lead time is shorter.

Parameter

· Part Number: E5-24-IN

· Filter Type: Compressed inline filter

· Filtration Material: Glass fiber, filtration paper, activated carbon

· Filtration Efficiency: 99.9999%

· Change Interval: 12 months

· Working temperature: -10 ~ 80°C

· Flow rate (m³/min/0.7mpa): 3

· Filter diameter (mm): 60.5

· Filter height (mm): 167

· Filtration accuracy: 0.01μm

· Maximum remaining oil content: 0.01ppm w/w

Application

· Industrial manufacturing machine

· Food and beverage

· Automotive

· Electronics

· Pharmaceuticals

· Medical and dental usage

· Petroleum

· Metallurgy

FAQ

Q: Are you factory or trading company?

A: We’re factory with many years designing and manufacturing experiences.

Q: Will you provide samples?

A: Yes, but you need to pay for freight cost.

Q: Can i make the payment online?

A: Yes. You can direct make an order and pay it through Alibaba.

Q: Do you have warranty?

A: The filter’s warranty is one year. When it starts work, the lifetime depends on the working

environment (like pressure, temperature, and particle /dust content etc)

Q: May you do OEM Service?

A: Yes.
