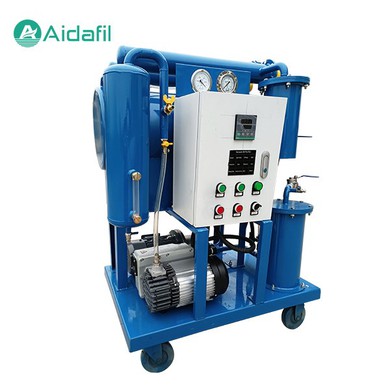

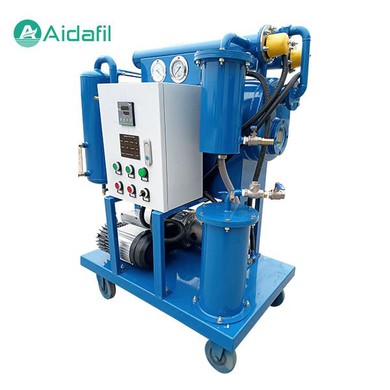

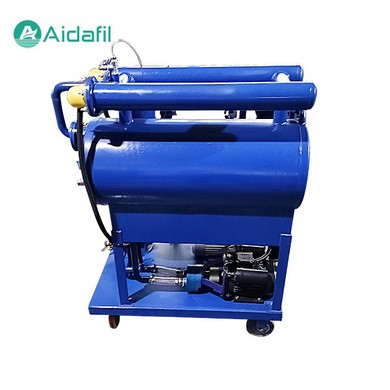

Vacuum Oil Filter Machine
Product Details
Vacuum oil filter machine can quickly separate metal impurities, carbon residue, colloids, suspended solids, emulsions and other pollutants from newly produced oil.
Applicaions:
● Lubricating oil
● Transformer oil
● Turbine oil
● Compressor oil
● Cooling mineral oil
● Insulating oil
● Gear oil
● Engine oil
Advantages:
● Efficiently remove water, gas and dust.
● Removing 100% free water and gas, and up to 80% dissolved water and gas.
● Prolonging the service life of liquid.
Product parameters
| Model | AOP-1V-25 | AOP-1V-32 | AOP-1V-50 | AOP-1V-100 | AOP-1V-150 | AOP-1V-200 |
| Flow rate(L/min) | 25 | 32 | 50 | 100 | 150 | 200 |
| Working pressure(Mpa) | 0.6 | |||||
| Rated vacuum(Mpa) | ≤ - 0.095 | |||||
| Water content | 5 - 30 | |||||
| Air content | ≤0.2% | |||||
| Coarse filtration(μm) | 100 | |||||
| Grade 1 filter rating(μm) | 10、20 | |||||
| Grade 2 filter rating(μm) | 3/5 | |||||
| Pressure differentials | 00.2Mpa | |||||
| Voltage(V) | AC 380V(Three-phase)、50Hz | |||||
| Motor power(kw) | 18 | 26 | 36 | 65 | 65 | 135 |
| Weight(kg) | 360 | 470 | 680 | 840 | 960 | 1500 |
|
Dimensions(mm) |
12500x920x1600 | 1350x980x1600 | 1500x1060x1800 | 1600x1080x2100 | 1800x1200x2200 | 2000x1200x2200 |
Note: * -is filter's rating,such as 03 is 3 microns.
**-is the suitable medium, Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate
hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
****-explosion-proof type: add F before type, Omission: normal type
