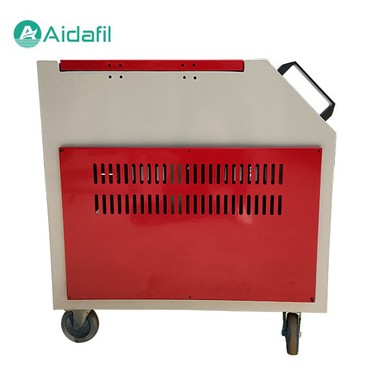

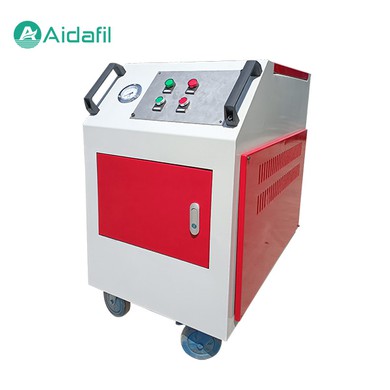

Box Type Movable Oil Purifier
Product Details
Mobile Oil Filter Machine is optional to carry fuel tank, comes with a fuel tank, it can move everywhere and filter the self-contained fuel tank to the standard and then directly inject it into the system.
Applications
The impurities in transformer oil can be degassed, dehydrated and filtered.
It can remove acidity, dirt, free carbon and other soluble oil decay products and discoloration.
It can be used for vacuum oil filling, vacuum drying and on-line operation of the transformer.
Features
Long service life, optional dehydration filter.

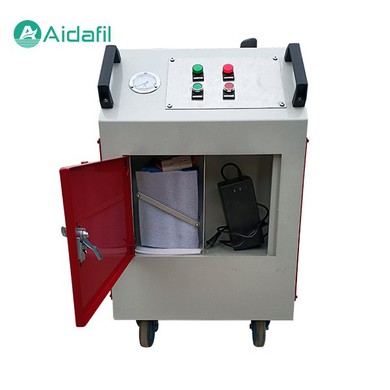

The top design can quickly open the structure, which is convenient for replacing the filter element.
High-quality wheels and bearings, running smoothly and without noise.
The magnetic starter is equipped with thermal relay protection to protect the motor and is durable.
Technical data:
| Rated pressure | 32 L/min |
| Coarse filter precision | 100 micron |
| Grade 1 filter precision | 3, 5, 10, 20 micron |
| Grade 2 filter precision | 3, S-W micron |
| Differential pressure | 0.2Mpa |
| Working temperature | 5-80℃ |
| Recommended viscosity | 10-160 cSt |
| Motor power | 0.75kw |
| Weight | 135kg |
| Dimension | 950x560x900 mm |
