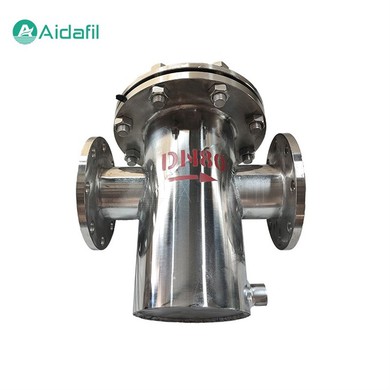

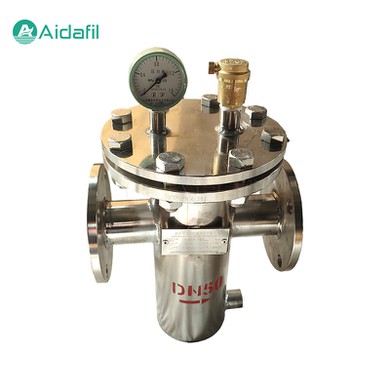

Basket Filter Equipment With Customizable Filtration Accuracy

The Basket Filter Equipment With Customizable Filtration Accuracy is often used for filtering large particle impurities, and the structure of the filter basket allows for an effective filtration area that is 2-3 times larger than the area of the diameter pipe, resulting in high filtration efficiency. A basket filter typically includes connecting pipes, cylinders, filter baskets, flanges, flange covers, and fasteners. It is designed with a basket-shaped filter screen, hence the name basket filter.

It can be applied in various industrial fields such as oil, chemical, pharmaceutical, food and other industries where water, oil or other liquids are piped.

The Basket Filter Equipment With Customizable Filtration Accuracy use the filter screen to intercept the solid particles and impurities in the fluid, so that it cannot pass through the filter screen, so as to achieve the purpose of filtration. When the fluid enters the basket filter from the inlet, it first passes through the filter screen. Larger particles and impurities are intercepted by the filter screen, and smaller particles and impurities enter the downstream equipment through the filter screen. As the filtration process progresses, impurities on the filter screen gradually accumulate, and the filtration resistance increases. At this time, it is necessary to clean or replace the filter screen. By regularly cleaning and changing the filter screen, the filtering effect and service life of the basket filter can be guaranteed.

Structural Characteristics

1. Simple structure - The basket filter is composed of filter basket, filter screen, inlet and outlet flange, sewage outlet, etc. It has a compact structure and is easy to install.

2. Filter screen - The filter screen is the core component of the basket filter, usually made of stainless steel and other materials, with high corrosion resistance and wear resistance. The pore size of the filter screen can be selected according to needs to meet the filtration requirements of different working conditions.

3. Filter basket - The filter basket is a frame structure used to support the filter screen, usually made of metal material, with high strength and stiffness. The shape of the filter basket is round, square, rectangular, etc., which can be customized according to actual needs.

4. Inlet and outlet flanges - Inlet and outlet flanges are used to connect pipes to facilitate fluid entry and discharge of basket filters. Flange specifications and dimensions can be selected according to actual engineering needs.

5. Sewage outlet - The sewage outlet is located at the bottom of the basket filter and is used to discharge the filtered impurities. The design of the sewage outlet should be easy to clean and drain to ensure the filtration effect.

Parameters

Advantages

1. Good filtration effect - The basket filter is filtered with a porous filter screen, which has high filtration accuracy and can effectively remove solid particles and impurities from the fluid.

2. Easy to clean and replace - The filter screen and filter basket of the basket filter can be removed, making it easy to clean and replace, reducing the cost of use.

3. Wide range of applications - The basket filter can be used to filter gases, liquids, and other media, and are suitable for a variety of working conditions.

4. Easy installation - The basket filter has a simple structure and is easy to install. It can be cleaned and replaced online without affecting the normal operation of the system.

Selection Points

1. Select the appropriate filter material and pore size according to the nature of the fluid and operating conditions.

2. Select the appropriate filter type and specification according to the fluid flow rate and pressure.

3. Consider the installation space and interface size of the filter, and choose the appropriate inlet and outlet flange.

4. Consider the lifespan and maintenance cost of the filter, and choose the appropriate filter and filter basket structure.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
