Basket Filter

A basket filter is a filter housing with built-in stainless steel filter basket. This design allows the filter to handle large flow.

High flow filtration tasks doesn't always require specially pleated elements, and for some, the capacity of bag filters are not enough.

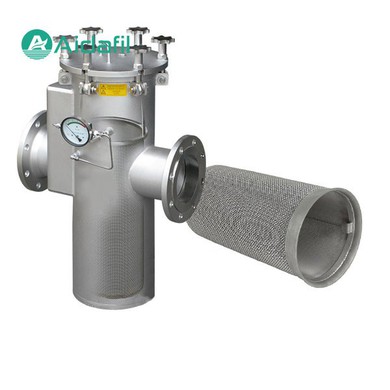

This is where an in-line mesh filter housing SF-IL excels, as the sturdy 304 stainless steel filter housing, is supplied with a stainless steel mesh filter basket, that may be removed for cleaning and reuse. The filter housing is constructed with inlet and outlet opposite, to allow inline installation.

The basket is designed to hold large amounts of dirt or particles, and may be cleaned for continuous use. This combination of a metal surface filter, with the dirt holding capacity of filter bags, allow for a longer use than most other high flow filters. The filter comes in a standard range of filtration degrees from 50µm to 1000µm, and the mesh filter has a double layer, to assure the efficiency of the filtration.

In addition to our inline filter, we have a basket filter specially designed for use with tank wagons. The AIDA basket filter is portable and can be used when emptying or refilling your tanker to protect against unwanted particles.
Features:
Custom design services
Choice of basket filter elements
Single cylinder design
Double cylinder design
Multi-cylinder design
Pleated element design available for low-pressure drop & high dirt hold
Large-area, heavy – duty baskets
Low-pressure drops
Carbon Steel, or Stainless Steel (304 Or 316) housing
Easy to clean
Liquid displacers for easier servicing
Normally designed for free flow area through screen, 4 – 6 times pipe flow area
Covers are O-ring sealed
All housings made from SS 316 L, SS 316 & SS304 are mirror polished to resist adhesion of dirt and scale
Carbon steel housing are painted coated externally & internally epoxy coated
Option of backwashing
Filtration rating available from 5 Micron to 2000 micron
ASME code stamp available
High-pressure rating design available
Flow rate up to 2000 m3/hr
Duplex / Triplex & Jacketed units available
High temperature & high-pressure design are available
Housing are permanently piped

Specifications:
Material of construction: SS 316L, SS 316, SS 304, carbon steel (all grade), mild steel, alloy metals, polypropylene, lead lining, rubber lining, Teflon lining
Choice of valve available
Gasket / O-Ring Material: Neoprene, Nitrile, Silicone, Viton, Buna-N, EPDM, PTFE
Basket element design available: Single Cylinder Design, Double Cylinder Design, Multi-Cylinder Design, Pleated Element Design, End Connections Available, NPT / BSP Threaded, Flanged Table E / Table F, ANSI B 16.5, ASA 150 # RF, DIN Standard, Tri Clover Adaptors, SMS /Dairy End Connection

Applications:
Fertilizers
Refineries
Power Plant
Steel
Chemicals
Process Industries
Cement Plant
Oil & Gas
Petrochemicals
Textiles
