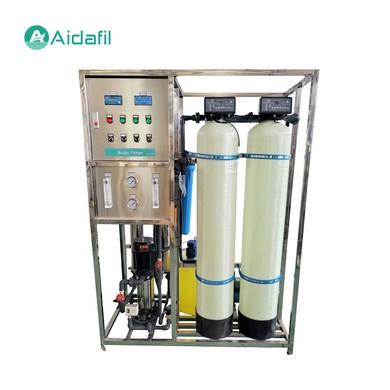

Industrial Reverse Osmosis System
Product Details
The reverse osmosis(RO) water treatment plant is an equipment to purify water with the action of pressure difference of semi permeable membrane. RO membranes can effectively remove majority of organics, harmful substances, bacteria, particulates etc. RO system is widely used in water treatment, purification for tap water, well water, underground water, borehole salty water, brackish water and seawater, pure water and ultra-pure water production, power stations, electronic industries, medicine manufactories, and medical treatment. It is a key equipment for pure water plant.
(Simple Configuration)
1.1 Raw water type: Tap water, well water, river water, etc
1.2 Inlet TDS<2000PPM.
1.3 Power: 220V 50Hz
| No. | Product Name | Specifications | Material | QTY | Remarks |
| 1 | Raw water solenoid valve | AD-RO | copper | 1 piece | |
| 2 | Dosing tank, metering pump | 1 set | |||
| 3 | Precision filter | HXUF | plastic | 1 set | |
| 4 | PP filter | 5u*500mm | PP | 1 piece | |
| 5 | Main inlet valve | DN20mm | UPVC | 1 piece | Food grade material |
| 6 | Primary RO membrane | 4040 | 1 set | ||
| 7 | Membrane housing | 4040 | stainless steel | 1 set | SS 304 |
| 8 | Primary high-pressure pump | Q:2m³/h H:120M | stainless steel | 1 piece | 380V 50HZ |
| 9 | Concentrated control valve | DN20 | UPVC | 1 piece | Food grade material |
| 10 | Pure water flow meter | 0-600L/H | Plexiglass | 1 set | |
| 11 | Concentrated flow meter | 0-2500L/H | Plexiglass | 1 set | |
| 12 | Voltage protection | 0-1.6Mpa | special | 1 set | Protect the high-pressure pump and membrane |
| 0-2.5Mpa | special | 1 set | |||
| -0.1-0.3Mpa | special | 1 set | |||
| 13 | Main Frame System | OEM | stainless | complete set | （ Includes a full set of electrical appliances） |
| 14 | Low-voltage electrical appliances |
complete set | |||
| 15 | Electric control system | 1 set | |||
| 16 | Electric control box | OEM | stainless | 1 set | |
| 17 | Pipeline valve system (including flow meter, pressure gauge) |
UPVC | complete set | Food grade material | |
| 18 | Conductivity tester CM-230K | 1 set | Online detection and display |
System function
1. Low-pressure shutdown protection. When the pre-treatment water supply is insufficient and the high-pressure pump inlet pressure is lower than 0.05MPa, the protection action will be automatically stopped and an audible and visual alarm will be issued.
2. The pretreatment is equipped with an automatic control multi-way valve, and the multi-media filter and the activated carbon filter are automatically cleaned under a certain pressure difference.
3. The reverse osmosis membrane cleaning system is equipped with physical cleaning, chemical cleaning and filling of the reverse osmosis membrane module.
