Basket Strainer

Basket strainer is the necessary pipeline parts in the industry production, the strainers are installed on the pipeline to removing the solids impurity of the liquid, to ensure the pipeline equipment under good condition operation, make the liquid more purity which is for getting excellent industry products.

Product Details

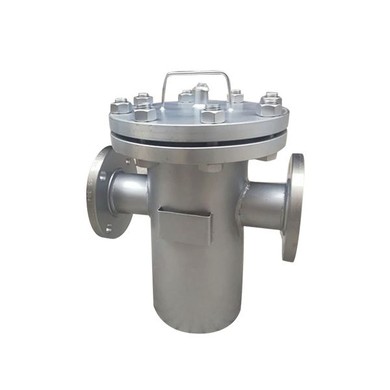

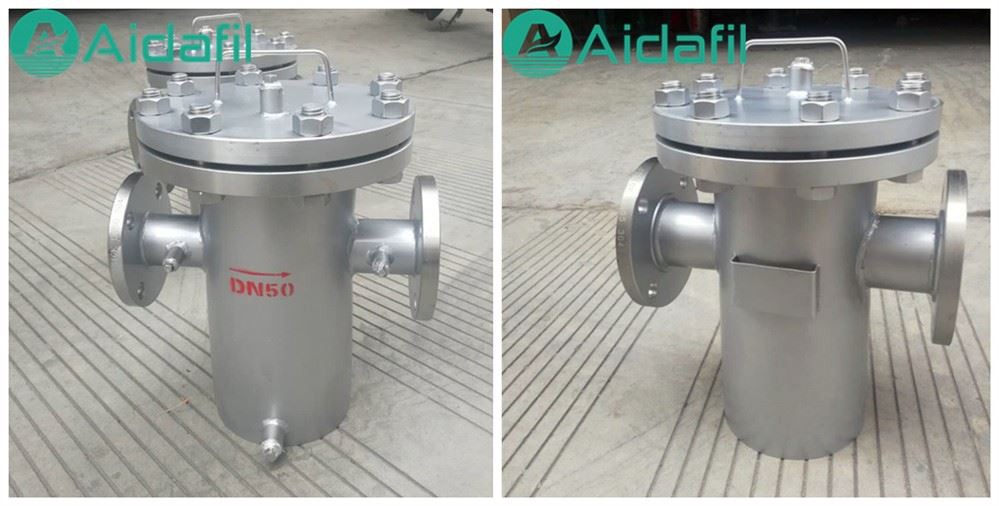

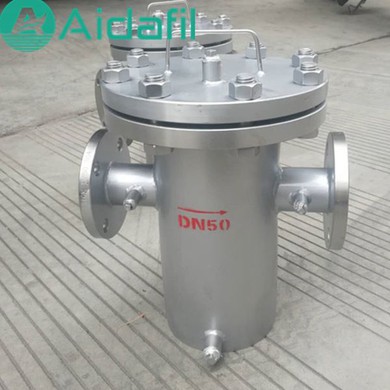

Basket Strainer

Basket strainer is the necessary pipeline parts in the industry production, It is installed in the pipe to remove impurities from the liquid, ensure the machine is running properly and the filter fluid is more pure. Filter basket can be reused after cleaning and widely application in water treatment, food, agriculture, pharmaceuticals industries.

Basket Strainer

Technical Parameter

Product name	Basket strainer
Performance specification
Working pressure	PN10 / PN16/ PN25/ PN40
Working temperature	-10℃~220℃
Filtering medium	Waste water,seawater ,cooling water,etc
Material of main parts
Body material	ss304、ss316L、Duplex SS,Cast iron
Screen material	SS304/SS316L
Filter micron	1-100um
Connection type	Flange

Feature of Basket strainer

1. Flat in and flat out structure design, more convenient to take over during installation

2. The filter screen and the filter basket are designed separately. When the filter screen is damaged, the filter screen can be replaced directly without replacing the whole filter blue

3. The top cover adopts the lifting ring bolt quick-mounting structure, which can be removed in 1 minute

4. The filter basket and barrel are designed with detachable, which is convenient for removing impurities

5. Filter up series basket filters are all designed with carbon steel, stainless steel 304 or 316L, which are anticorrosive and durable.

6. The appearance of mirror polishing, or matte sand blasting treatment, more beautiful products

7. Filtering precision Customized to meet the needs of different customers

Installation& Maintenance

Basket filter shall be installed with care that all surfaces and interiors are free of foreign matter. Remember, the arrow on the surface points to the flow direction.

Maintain basket filter, pay attention to regular cleaning. Carefully disassemble the filter housing, take out the filter basket, clean and reuse.

Package

1. Each filter can be packed into neutral box .

2. Can be packed as customers' special requirements.

3. All products packed with the wooden box .

Service Philosophy

1. Quality is first in our company.

2. Our tech dept choose suitable one for your needs .

3. Not only domestic clients, but overseas customers ,best tech support and service for you .

4. Creating your most satisfactory with our hundredfold efforts!

5. Looking forward to your visit and appreciate your suggestions!
