Self-cleaning Screen Filter
Product Details

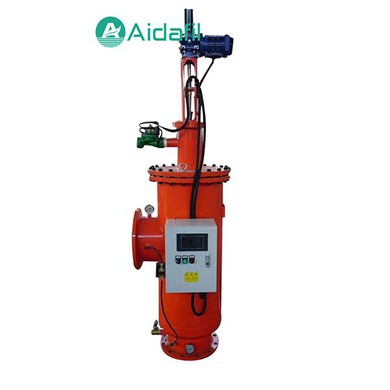

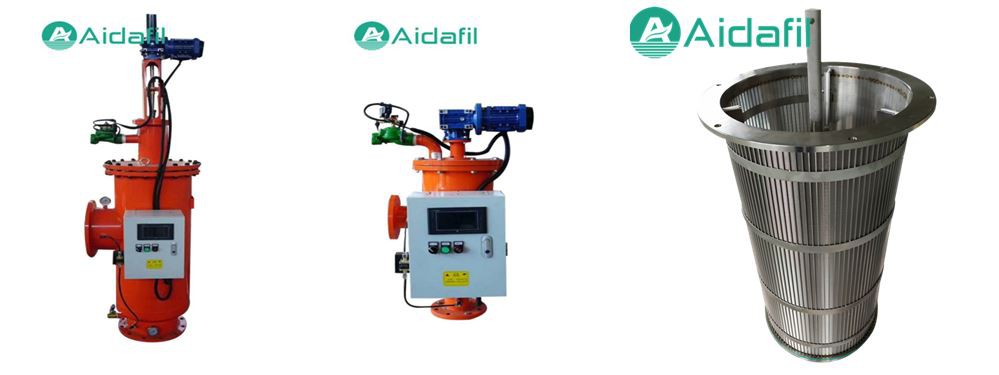

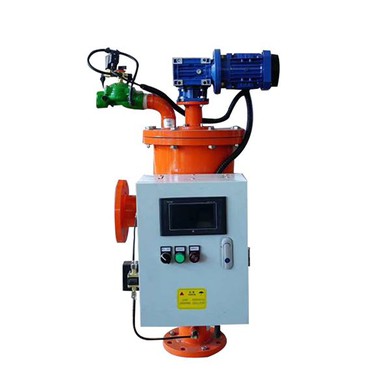

Screen Automatic Cleaning Water Filter
AIDA screen automatic cleaning water filter, as self-cleaning filter ,offers an efficient solution to filtration at a minimal loss of pressure and flushing water. The self-cleaning system sucks the deposited waste from the filter screen in approximate 8 seconds, while not interrupting the filtering process. Thus automatic circulation, automatic cleaning, automatic sewage discharge.
Production Feature
(1) Online operation without shutdown, no bypass features, and a short cleaning time, sewage consumption less than 1% of the total flow.
(2) Cleaning method is simple and efficient, and the cleaning cycle electronic monitoring, can achieve automatic cleaning blowdown, cleaning time, cleaning cycle parameters can be adjusted;The design concept of man-machine integration.(the user can adjust the above parameters according to the actual working condition of the product and the user's demand.)
(3) Filter micron defaults to 100μm, the selction range is from 50μm to 3000μm.Large filtration area, high pollution content.Users can customize according to the actual working condition.
(4) High maintainability, easy installation and disassembly.
(5) Control ways: Differential pressure control, time control, manual control.
(6) With motor overload, overheating protection, can effectively protect the motor.
(7) Connect type: Flange connection,using gb flange, universal.
(8) The extension can be linked to the user's phone and can be monitored 24 hours a day.
(9) The filter cleaning and mixing shaft adopts the three-way lip sealing structure, which can effectively solve the leakage and leakage problems under the long-term working state of rotating shaft and ensure the stability and safety of the whole filter machine.
Tech Parameter
Filter Flow | 80-4200 m³/h |
Max. recommended working pressure | 10 bar/16 bar/25 bar |
Min. operating working pressure during backwash | 2.5 bar |
Pressure loss | < 0.1 bar |
Water temperature range | 0 ~ 95 °C |
Filtration Micron | 50~3000um |

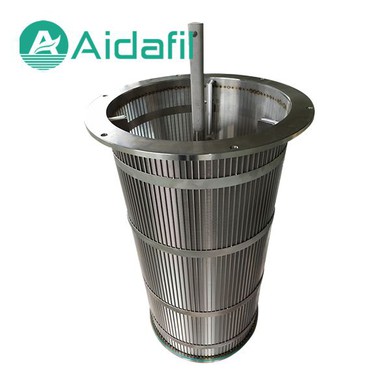

Filter element | SS wedge mesh filter |
Filter element Material | SS 304 / SS316 mesh |
Filter housing material | Carbon steel ST37-2/SS304/SS316 |
Connections | Flange |
Backwash time | 10~50 seconds |
Water consumption during backwash | 1% of filtered water |
Control way | Differential Pressure/PLC Timer/Manual |
Cleaning way | Brush |
Drive way | Motor drive |
Sewage way | Automatic |
Installation | Vertical |
Rated operating voltage | 3PH/380V/50Hz |

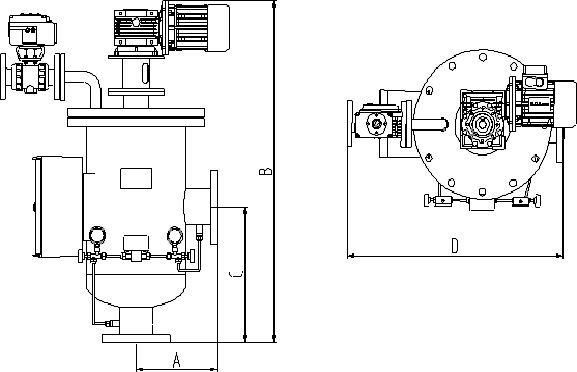

Tech Specification & Drawing
Model | A（mm） | B（mm） | C（mm） | D（mm） | Sewage Outlet | Motor Power (KW) | Flow (m3/h) | Weight |
AIDA-ZL-80 | 250 | 1000 | 420 | 550 | 40 | 0.37 | 50 | 80 |
AIDA-ZL-100 | 255 | 1010 | 425 | 565 | 40 | 0.37 | 80 | 105 |
AIDA-ZL-125 | 255 | 1060 | 425 | 565 | 40 | 0.37 | 125 | 130 |
AIDA-ZL-150 | 279 | 1200 | 550 | 620 | 40 | 0.37 | 150 | 180 |
AIDA-ZL-200 | 306 | 1400 | 718 | 680 | 40 | 0.75 | 320 | 235 |
AIDA-ZL-250 | 325 | 1680 | 848 | 725 | 40 | 0.75 | 490 | 280 |
AIDA-ZL-300 | 380 | 1720 | 930 | 830 | 50 | 0.75 | 710 | 420 |
AIDA-ZL-350 | 478 | 2050 | 1080 | 956 | 50 | 0.75 | 970 | 537 |
AIDA-ZL-400 | 550 | 2280 | 1228 | 1020 | 50 | 0.75 | 1260 | 620 |
AIDA-ZL-450 | 654 | 2450 | 1372 | 1190 | 50 | 0.75 | 1600 | 685 |
AIDA-ZL-500 | 706 | 2900 | 1508 | 1285 | 65 | 0.75 | 1970 | 738 |
AIDA-ZL-600 | 840 | 3450 | 1828 | 1320 | 65 | 0.75 | 2500 | 860 |
AIDA-ZL-700 | 1008 | 3960 | 2160 | 1680 | 65 | 0.75 | 3500 | 1400 |
Application Area
Petrochemical
Chemical
Water treatment
Pulp and paper industry
FAQ
1. How many staff in your company ?
We have 10 technical men, 30 people in our office, 25 people in our factory.
2. Which countries have you exported to ?
We have been exporting for 18 years and have exported to many countries. Like America, Canada, Germany,Poland,South Africa, Singapore, Thailand, Kazakhstan including Bangladesh and so on.
3. Can you check freight cost for us ?
Yes! We have long cooperated forwarder. He can check competitive shipping cost and arrange delivery for us. By the way, he is responsible for our goods. You can be relax and dont worry.
4. How is quality of your filter housing?
Quality is the life. Quality is best. Quality is everything.
