AIDA Series Candle Filter
Product Details

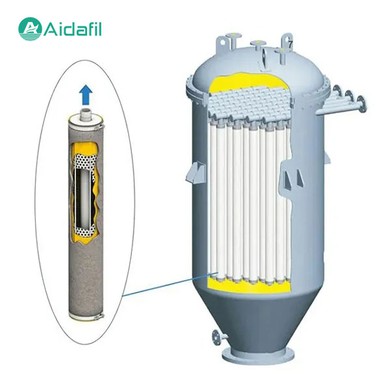

AIDA candle filters are a comprehensive enclosed system designed to effectively remove solids as small as 0.2 micron. These advanced back-pulse filters are particularly suitable for refining liquids to meet strict standards and demanding specifications. The vertical orientation of the vessel and filter elements allows for greater filtration surface area relative to footprint.
This candle filter is designed in a compound quincunx and row pipe(stainless steel inside,filter cloth outside), the drain pipe in-middle can help drain the liquid kept in the filter pipe, when slag is discharged, the gas is used to blow back, the efficiency is much higher than other filters. This filter can be used in those materials with the impurity content from 0.1% to 50%.
The versatility of these candle polishing filters allows them to cater to a wide range of applications. Depending on specific requirements, the filter elements can be constructed with porous sintered metal, multi-layer media, or fabric filter cloth installed candles. Solids within the slurry are efficiently separated through the traditional outside-in filtration process. Discharging of the collected solids is accomplished using the back-pulse technique, utilizing either gas or a compatible liquid.
Features:
(1) The porous candle filter cartridge with detachable connection way, it is easy to change, clean and maintain.
(2) The water content of the slag can be adjusted according to customers requirement, the filter cake can be crushed easily, It can be sent to the hollander tub directly, no transporter required.
(3)All-closed operation, It can be applied to the normal materials , also can be used in the special materials which is inflammable, explosive,poisonous, and the machine is available for the filtering of the no pollution fresh food, biologicals, medicines industries.
(4)The intelligent control system can save the labor costs greatly.
Application:
Biopharmaceuticals: fermentation extracts, antibiotics, anti-cantharidin, streptomyces, citric acid
Chemical industry: Amine, Catalyst Recovery, Sulfuric Acid, Polyols, Titanium Dioxide, PTA Particles, Polyglycol, Potassium Carbonate
Food and beverage: Apple juice, grape juice, raw syrup, fruit grape syrup, glucose syrup, sucrose, beer, olive oil, palm oil, soybean oil
Metal processing:Cleaning agents, coal tar, machine cooling oil, sheet metal foil rolling oil
