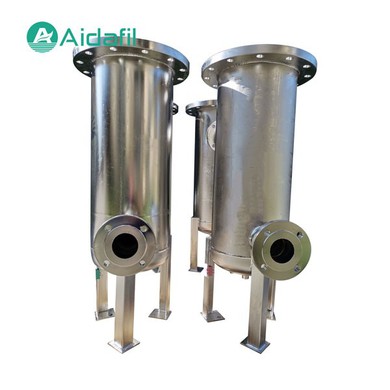

Water Treatment Equipment Security Filter Filtration
Product Details
Main Features
1. The filtering area is large, the pressure loss is small, and the replacement of the filter element is convenient.
2. Stable filtration performance and continuous use of compressed air.
3. Equipped with a pressure difference indication device, there are two methods for automatic and manual discharge.
4. The filter material has high cleanliness and no pollution to the filter medium.
Working Pricinple
Under the action of pressure, the raw liquid passes through the filter material, while the filter residue remains on the filter material. The filtrate flows out through the filter material, effectively removing impurities, precipitates, suspended solids, and bacteria from the water, thus achieving the purpose of filtration. Using PP filter element 5 μ Perform mechanical filtration on the pores of m. The trace suspended particles, colloids, microorganisms, etc. remaining in the water are intercepted or adsorbed on the surface and pores of the filter element. As the water production time increases, the operating resistance of the filter element gradually increases due to the pollution of intercepted substances. When the water pressure difference between the inlet and outlet reaches 0.1MPa during operation, the filter element should be replaced.
APPLICATIONS
1. Weak corrosive materials in chemical and petrochemical production, such as water, oil products, ammonia, hydrocarbons, etc.
2. Corrosive materials in chemical production, such as caustic soda, soda ash, concentrated sulfuric acid, carbonic acid, aldehyde acid, etc.
3. Materials with hygiene requirements in food and pharmaceutical production, such as beer, beverages, dairy products, syrup, etc.
Product Parameters
| Model | Tank size | Pipe diameter | Structure | Number of filter elements() | Filter specifications() | Water yield(m³/h) |
| AD-GL3 | Φ219*1000 | DN32 | Clamp | 5 | 20 | 3 |
| AD-GL5 | Φ219*1200 | DN40 | Clamp | 5 | 30 | 5 |
| AD-GL7 | Φ219*1500 | DN50 | Clamp | 5 | 40 | 7 |
| AD-GL15 | Φ325*1550 | DN65 | Flange | 10 | 40 | 15 |
| AD-GL22 | Φ377*1600 | DN80 | Flange | 15 | 40 | 22 |
| AD-GL30 | Φ426*1650 | DN80 | Flange | 20 | 40 | 30 |
| AD-GL40 | Φ450*1700 | DN100 | Flange | 25 | 40 | 40 |
| AD-GL45 | Φ500*1750 | DN100 | Flange | 30 | 40 | 45 |
| AD-GL55 | Φ550*1800 | DN100 | Flange | 35 | 40 | 55 |
| AD-GL85 | Φ600*1850 | DN125 | Flange | 55 | 40 | 85 |
| AD-GL90 | Φ650*1900 | DN125 | Flange | 61 | 40 | 90 |
| AD-GL110 | Φ700*1950 | DN125 | Flange | 73 | 40 | 110 |
| AD-GL125 | Φ750*2000 | DN150 | Flange | 85 | 40 | 125 |
| AD-GL180 | Φ900*2100 | DN150 | Flange | 121 | 40 | 180 |
| AD-GL195 | Φ1000*2150 | DN200 | Flange | 131 | 40 | 195 |
