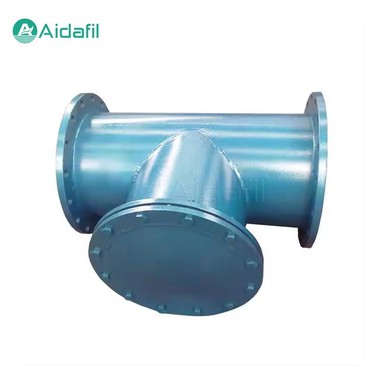

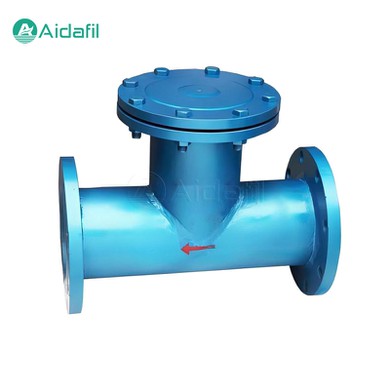

Effective Simple-Design T-Type Filter

The effective simple-design T-type filter is a small device used to remove a small amount of solid particles from liquids, playing a crucial role in a variety of industrial applications. The T-type filter is named after its structural shape similar to the English letter "T", which consists of an inlet, an outlet, and a removable filter screen. The T-type filter can be made of a variety of materials, including cast iron, carbon steel, stainless steel, etc., to adapt to the characteristics of different media and anti-corrosion requirements. The range of operating temperatures is also wide, allowing T-type filters to operate in extreme temperature conditions, from extremely low -196 °C to high temperature 400 °C.

When the fluid containing solid particles passes through the filter, the particles are blocked by the filter screen, and the clean fluid continues to pass through to achieve the purpose of filtration. Over time, the accumulation of impurities on the filter screen will gradually increase, resulting in an increase in pressure drop. At this time, the filter screen needs to be cleaned or replaced in time.

Basic construction

The basic structure of an effective simple-design T-type filter is in the shape of a "T", which is mainly composed of the following parts:

1. Shell. As the main body of the filter, the shell is usually made of corrosion-resistant materials such as stainless steel, carbon steel or cast iron to adapt to different fluid media and working environments.

2. Filter screen. Located inside the shell, it is a key component of filtration. Metal wire mesh, stainless steel woven mesh and other materials are commonly used. According to the size of the particles to be filtered, the pore size of the filter screen can range from micron to millimeter.

3. Cover and Fasteners. Used to hold the filter and allow the user to quickly open the housing for inspection, cleaning or replacement of the filter.

4. Sewage outlet. The T-type filter is equipped with a sewage device for easy removal of collected impurities.

Parameters

Advantages

1. Easy to maintain. Quick-opening design for daily inspection and cleaning.

2. Strong adaptability. A variety of materials and specifications are available to meet the needs of different working conditions.

3. Economical and practical. Initial investment costs are low, and maintenance costs are also relatively low.

4. Flexible installation. A variety of installation methods to adapt to complex pipeline layouts.

Application field

The effective simple-design T-type filters are used in a wide range of applications, covering almost all industries involved in fluid transmission, including but not limited to:

1. Water treatment. Tap water supply, sewage treatment, circulating water systems, etc.

2. Chemical and petrochemical industries. Raw material processing, finished product transportation, to prevent pipeline corrosion and equipment blockage.

3. Food and Beverage. Ensure the cleanliness of water and raw materials used in production.

4. Pharmaceutical Manufacturing. High standard sterile filtration, compliant with GMP requirements.

5. HVAC. Hot and cold water circulation system to prevent clogging of radiators and heat exchangers.

6. Agricultural irrigation. Filters impurities from water sources, protects sprinklers and drip irrigation equipment.

Use and maintenance

- Regular inspection. According to the operating status of the system, regularly check the working status and pressure difference of the filter to determine whether the filter needs to be cleaned or replaced.

- Cleaning and replacement. When cleaning the filter, close the upstream and downstream valves, remove the lid and remove the filter, clean with water or appropriate solvent, and replace the filter with a new one if necessary.

- Seal replacement. After each maintenance, a new sealing gasket should be replaced to ensure sealing performance.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
