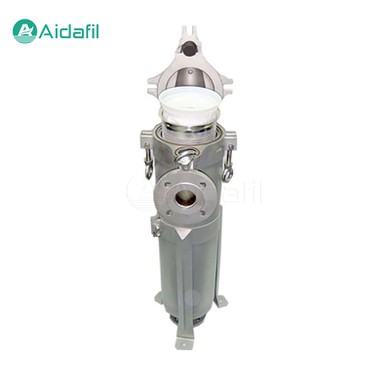

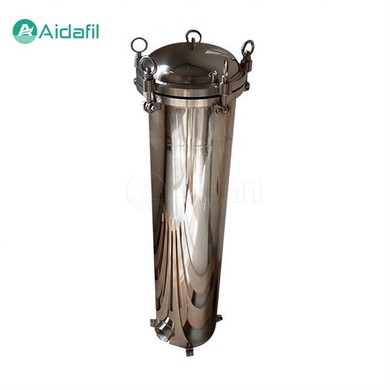

Efficient Solid-Liquid Separation Single-Bag Filter

The Efficient Solid-Liquid Separation Single-Bag Filter is a solid-liquid separation device with compact design and easy operation. It captures solid particles in the liquid through a single replaceable filter bag and allows only clean liquid to pass smoothly. Its core structure includes a sturdy housing, special filter bags, precisely arranged inlet and outlet ports, and an effective clog-clearing mechanism. It is widely used in chemical industry, food processing, pharmaceutical and other fields to achieve efficient filtration operations while occupying With small space and easy maintenance, it is an indispensable purification device in modern industrial production.

Structural analysis

1. Rugged housing

The housing of the single-bag filter is the "body" of the entire device, usually made of high-quality stainless steel or other durable materials. It provides solid protection for the filter bag and other components inside, ensuring that the filter can operate stably in a variety of harsh working environments.

2. Core filter bag

The filter bag is undoubtedly the most critical part of the single-bag filter. It is made of special filter materials with precise pore size and good filtration performance. Filter bags of different materials and specifications can meet the filtration needs of different materials, just like a tailor-made "battle suit" for the filter.

3. Inlet and outlet ports

The inlet port is the channel where the material enters the single-bag filter, and the outlet port is the place where the cleaning liquid flows out after filtration. Whether the design of these two ports is reasonable or not directly affects the efficiency and effect of filtration.

4. Clog-clearing mechanism

In order to prevent the filter bag from being blocked during the filtration process, the single-bag filter is equipped with a clog-clearing device. It can clean the impurities on the filter bag in time and keep the filter unobstructed, just like a "cleaner" who keeps the equipment tidy at all times.

Working procedure

1. Start of filtering

When the material enters the housing of the single-bag filter through the inlet port, a magical filtration journey begins.

2. Interception of filter bags

The solid particles in the material are intercepted by the pore size of the filter bag as soon as they come into contact with the filter bag. The filter bag acts as a strong barrier to separate impurities from clean liquids.

3. Outflow of liquid

After being filtered by the filter bag, the cleaning liquid smoothly passes through the filter bag and flows out from the outlet port, continuing their mission in the production process.

4. Function of the plug clearing device

As the filtration progresses, more and more impurities may accumulate on the filter bag. At this time, the clog-clearing device comes into play to remove impurities from the filter bag to ensure that the filter always maintains good filtration performance.

Technical parameters

Application in different fields

1. Chemical industry

In chemical production, single-bag filters are often used to filter various chemical raw materials and intermediates to ensure the purity and quality of products.

2. Food industry

Ensuring food safety is a top priority for the food industry. Single-bag filters can effectively filter out impurities and contaminants in food and safeguard people's health.

3. Pharmaceutical industry

The requirements for filtration in the pharmaceutical process are extremely strict, and the high-precision filtration capabilities of single-bag filters make them one of the indispensable equipment in the pharmaceutical industry.

4. Water treatment field

Whether it is the treatment of industrial water or domestic water, single-bag filters can play an important role in removing impurities and harmful substances from water.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
