High Quality Multi Cartridge Security Filter

Name: High Quality Multi Cartridge Security Filter
Brand: AIDA
SKU: 237361447

The High Quality Multi Cartridge Security Filter is a water treatment device used to remove particulate matter from liquids. It is commonly used to protect downstream equipment such as reverse osmosis systems, ion exchangers, and ultrafilters from particulate contamination.

Product Details

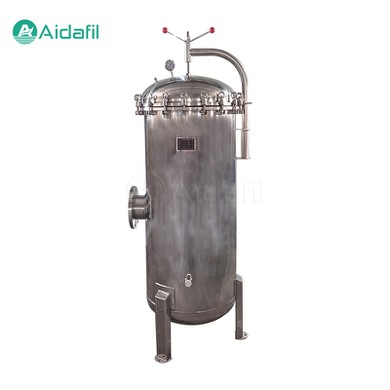

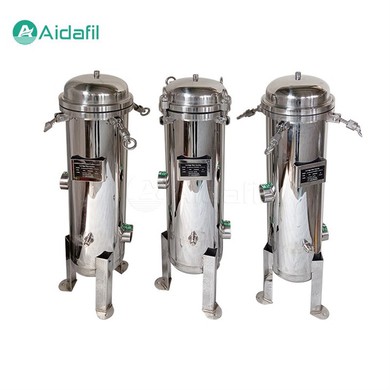

The High Quality Multi Cartridge Security Filter is mainly composed of filter shell, filter cartridge, inlet and outlet pipe, sewage valve and other parts. The filter shell is usually made of stainless steel or carbon steel material, which has high corrosion resistance and strength. Multiple filter cartridges are installed inside the filter shell. The filter cartridge is the core component of the filter and is responsible for filtering the fluid. The material and precision of the filter cartridge determine the filtration effect and service life of the filter. The inlet and outlet pipes are respectively connected to the inlet and outlet of the filter shell to guide the fluid into and out of the filter. The sewage valve is located at the bottom of the filter shell and is used to discharge the dirt and impurities in the filter shell.

The High Quality Multi Cartridge Security Filter employs the filter cartridge to intercept and absorb impurities in the fluid. When the fluid enters the filter, it first enters the filter shell through the inlet pipe, and then filters through the filter cartridge. The filtration accuracy of the filter cartridge is very high, which can effectively remove tiny particles, impurities and microorganisms in the fluid. The filtered cleaning fluid flows out of the filter through the outlet pipe to achieve the purpose of purification. During the filtration process, the filter cartridge will gradually accumulate dirt and impurities. At this time, the filter cartridge needs to be cleaned or replaced regularly to ensure the filtration effect.

Parameters

filter cartridge quantity	3-123
Material	Cylindrical shell, 304 or 316L stainless steel; Equipped with multiple filter cartridges
Use	Used to filter out fine substances after multi-media filtration (such as tiny quartz sand, activated carbon particles, etc.)
Filter flow	3-246m³/h

3 filter cartridges	3 m³/h
5 filter cartridges	5-10 m³/h
7 filter cartridges	7-14 m³/h
12 filter cartridges	12-24 m³/h
20 filter cartridges	40 m³/h
25 filter cartridges	50 m³/h
30 filter cartridges	60 m³/h
36 filter cartridges	72 m³/h
42 filter cartridges	90 m³/h
51 filter cartridges	102 m³/h
60 filter cartridges	120 m³/h
72 filter cartridges	144 m³/h
123 filter cartridges	246 m³/h

Performance advantages

1. High filtration accuracy

The multi cartridge security filter adopts a high-precision filter cartridge, which can effectively remove tiny particles and impurities in the fluid and ensure the cleanliness of the fluid.

2. Large flow rate processing

Due to the multi-cartridge design, the security filter has a large filtration area and can handle large flow rates to meet the needs of different working conditions.

3. Low pressure loss

The structure design of the multi cartridge security filter is reasonable, and the flow resistance of the fluid in the filter is small, so the pressure loss is low and the energy saving effect is significant.

4. Long service life

The filter cartridge of the multi cartridge security filter is made of high-strength, corrosion-resistant materials, providing a long service life, reducing replacement frequency and maintenance costs.

5. Easy maintenance

The filter cartridge of the multi cartridge security filter is easy to disassemble, and users can regularly clean or replace the filter cartridge according to the actual situation to ensure the filtration effect.

Application areas

The High Quality Multi Cartridge Security Filter is widely used in various industrial fields, such as chemical, petroleum, pharmaceutical, food, water treatment, etc.

In the chemical industry, multi cartridge security filters can be used for the filtration of raw materials, intermediates, finished drugs, etc., to ensure the purity and safety of medicines.

In the petroleum field, multi cartridge security filters can be used for the filtration of oil, natural gas, etc., to remove impurities and moisture, and ensure the quality of oil products.

In the food field, multi cartridge security filters can be used for the filtration of beverages, dairy products, edible oil, etc., to remove impurities and microorganisms, and ensure the hygiene and safety of food.

In the field of water treatment, multi cartridge security filters can be used to filter tap water, sewage, etc., to remove suspended solids, particles, microorganisms, etc., to ensure the safety and compliance of water quality.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
