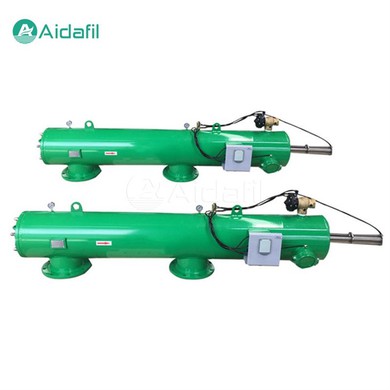

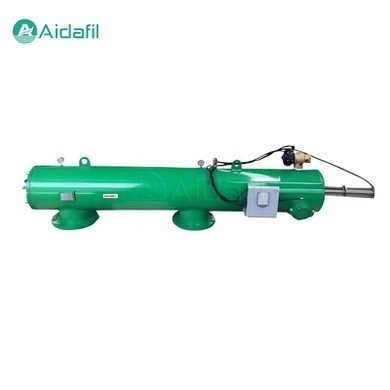

Stainless Steel Horizontal Self-Cleaning Filter

The stainless steel horizontal self-cleaning filter has won wide recognition in the market for its sturdy and durable stainless steel housing and intelligent self-cleaning function. The filter is made of high-quality stainless steel material, and the housing is sturdy and can withstand greater pressure and impact. At the same time, the stainless steel housing has good corrosion resistance and can operate stably in various harsh environments. In addition, the filter is also equipped with an intelligent control system, which realizes functions such as automatic monitoring, automatic cleaning and automatic sewage discharge, which greatly reduces the burden on operators.

Working principle --- Automatic monitoring, intelligent cleaning

The working principle of the stainless steel horizontal self-cleaning filter mainly includes two processes: automatic monitoring and intelligent cleaning. When water enters the filter from the water inlet, impurities are intercepted on the inner wall of the filter cartridge, while the filtered clean water flows out from the water outlet. As the filtration time extends, the impurities on the inner wall of the filter cartridge gradually increase, resulting in an increase in the pressure difference between the inlet and outlet. When the pressure difference reaches the preset value or reaches the cleaning time, the filter will automatically start the cleaning process.

During the cleaning process, the filter first opens the automatic sewage valve to discharge some of the water containing impurities. Then, the motor drives the cleaning brush to rotate and clean in the filter screen to remove the impurities attached to the filter screen. The cleaned impurities are discharged from the sewage valve along with the water flow. The whole cleaning process requires no manual intervention and realizes fully automated operation.

Application field --- Wide application, remarkable effect

The stainless steel horizontal self-cleaning filters have a wide range of application fields, including but not limited to the following:

1. Industrial filtration application

In industrial production, the filter can be used for cooling water filtration, protective nozzle, sewage tertiary treatment, municipal water reuse and other scenarios. Its high-efficiency filtration and automatic cleaning functions can ensure the purity and stability of water quality, providing a strong guarantee for industrial production.

2. Irrigation filtration application

In the field of agricultural irrigation, the filter can be used for the filtration of groundwater, municipal water, rivers, lakes and seawater. Its unique filter unit structure design makes the filtration precision high and the pollution capacity large, which can effectively remove impurities and harmful substances in water and ensure the safety and purity of irrigation water.

3. Other application scenarios

In addition, the filter can also be used in R.O. system pre-filtration, pickling, papermaking white water filtration, injection molding machine, pasteurization system, vacuum pump system, air compressor system and other fields. Its wide applicability makes the filter a multi-functional filtration equipment.

Product advantages --- High efficiency and energy saving, intelligent and convenient

The stainless steel horizontal self-cleaning filter offers the following significant advantages:

1. High-efficiency filtration

The filter is designed with a high-precision filter screen and a unique filter unit structure, which can effectively intercept impurities and harmful substances in water and ensure the purity and stability of water quality.

2. Intelligent cleaning

The filter is equipped with an intelligent control system, which realizes functions such as automatic monitoring, automatic cleaning and automatic sewage discharge. No manual intervention is required during the cleaning process, which greatly reduces the burden on the operator.

3. Energy saving and environmental protection

The filter adopts an energy-efficient motor and control system, which can reduce energy consumption while ensuring the filtration effect. In addition, its unique cleaning method also reduces the sewage consumption and reduces the impact on the environment.

5. Rugged and durable

The stainless steel housing is durable and has good corrosion resistance to operate stably in various harsh environments. At the same time, there are few wearing parts, no consumables, low operation and maintenance costs, and simple operation and management.

Parameters

Installation and maintenance

1. Install

- The filter should be installed on a level surface to ensure stability and safety.

- Pipelines such as water inlet, water outlet, and cleaning drain should be firmly connected to prevent leakage.

- The power connection should comply with the relevant requirements of electrical equipment to ensure the normal operation of the motor.

2. Maintenance

- Regularly check the working status of the filter to ensure the filtration effect.

- Check the cleaning of the filter element and replace it manually if necessary.

- Regularly check the working status of the drive device, control system, and other components to ensure the normal operation of the equipment.

- If there is any fault, it should be eliminated in time to ensure the stable operation of the filter.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
