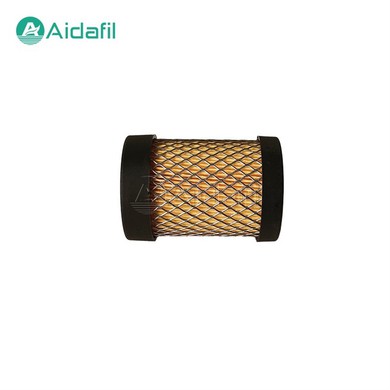

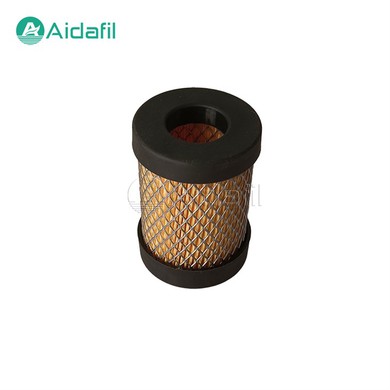

Line Filter Compressed Air Interchangeable Element 1070 V

Line Filter Compressed Air Interchangeable Element 1070 V is a highly reliable and professional-grade filter element designed with advanced filtration technology to remove contaminants like dust, dirt, oil, and water from compressed air. The filter element has gained immense popularity in various industries due to its exceptional performance, durability, and cost-effectiveness.

Product Details

The Line Filter Compressed Air Interchangeable Element 1070 V is generated to remove contaminants and oil from compressed air. It uses a sophisticated filtration process that leverages multiple layers of filter media. It helps prevent rust and corrosion by removing moisture before it enters the compressed air system. This element can remove impurities down to 3 microns, ensuring that compressed air remains clean and pure and the lifespan of the components in the compressed air system get extended. Its maximum operating pressure is 16 bar, and its maximum operating temperature is 66 degrees Celsius.

The ease of use and maintenance of the 1070 V filter element is eye-catching. It is designed to be quickly and easily installed and replaced. And with its durable construction, it can withstand harsh operating conditions and continue to perform at a high level for an extended period. This 1070 V filter element is also an environmentally friendly choice. It helps reduce energy consumption and carbon emissions by improving the efficiency of the compressed air system. This translates to significant cost savings and a smaller carbon footprint for businesses.

The 1070 V inline filter element’s ample flow capacity and high-performance filtration make it ideal for various applications, including the chemical and petrochemical industries, electronics manufacturing, food and beverage industries, and pharmaceutical industries.

Our company values customer satisfaction and goes above and beyond to meet their requirements. Our company has a team of professional and experienced engineers who work closely with customers to identify their unique needs and tailor solutions to address them.

Specification

Part No.: 1070 V

Filter type: Compressed inline filter element

Filtration accuracy (μm): 3

Residual oil content (ppm): 5

Flow rate (nm³/min): 1.2

Filter efficiency: 99.999%

Application: Air compressor

Certificate: ISO

Feature & Advantage

1. High efficiency filtration

2. Low pressure drop
