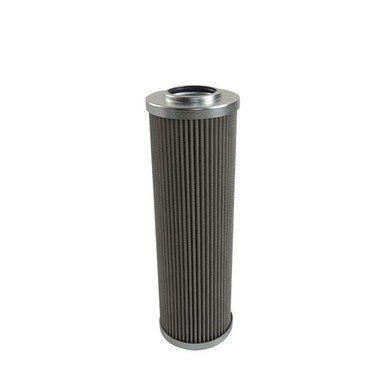

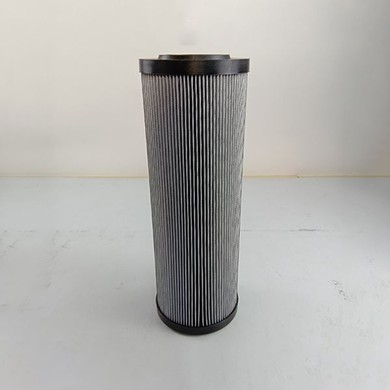

Oil Filter Element

We produce various specifications of hydraulic filter elements, air compressor filter elements, water filter elements and various metal filter elements. At the same time, we support well-known brands such as the United States, Germany, Italy, Taisei kogyo, Ireland to replace filter elements. We can also customize filter elements according to actual needs. Welcome to contact us.

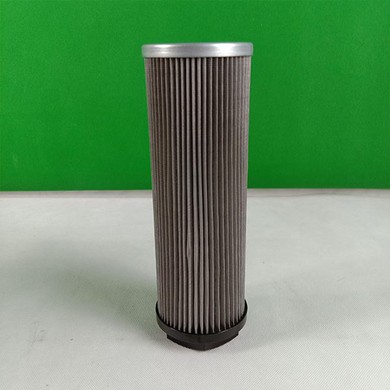

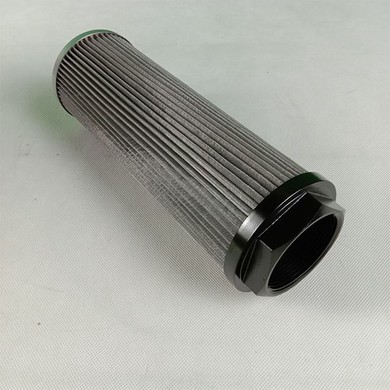

Oil Mist Filter 3508094

oil mist filter 3508094 is a filtration system of superior efficiency it collects 99.97% of oil droplets 0.3 micron and larger, thus removing virtually 100% of oil mist emissions. This performance places oil mist filter 3508094 at the very forefront of oil mist elimination technology., our oil mist filter 3508094 with long service life for Large high speed rotation equipment such as gas turbines, steam turbines, axial and centrifugal compressors, requires a large volume of oil for lubrication, cooling, and sealing of the bearings. The lubricating oil can be either mineral based or synthetic.

Oil Filter Element Advantage

● The quality and performance can be guaranteed as original elements.

● Filter Medium: Glass fiber cotton.

● Filtering precision 1, 3, 5, 10, 20, 50, 100 and 150 micron.

● Collapse pressure rating 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa

● Temperature Range -4°F~212°F

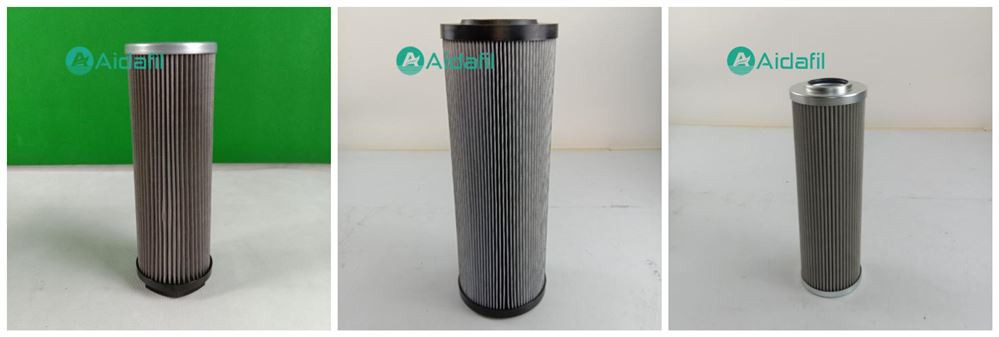

More Oil Filter Part Number For Your Ref

Application

Turbines are widely found throughout the world used in a variety of mechanical drive applications, including compressors, electric generators, marine propulsion, pumps and other loads. These applications are typically found in air separation, power generating, gas transmission and petri-chemical facilities.

The bearing surfaces that the oil comes in contact with are very hot (350° - 700°F), and are rotating at high speeds. The high temperature and shearing action generates a large volume of very fine oil mist (droplets) plus a considerable amount of vapor (gas). When this oil mist and oil vapor is vented from the lube oil tank, it causes a visible plume. This oil plume is subject to increasingly stringent environmental laws and regulations at all government levels throughout the United States and the world.

Lube Oil Systems

The emissions from the vent of a lube oil tank are difficult to eliminate because the majority of oil mist droplets fall in the range of less than 1 micron in diameter. Oil mist control technologies that have been used in the past include electrostatic precipitators (ESPs), rotating drums, packed fiber beds and mesh pads. The manufacturers of these technologies all claim at lest 95% efficiency, some even go as high as 99% efficiency.

While all of these types of technologies are satisfactory for removing large droplets of oil, they are not adequate enough for removing sub-micron particles 0.5 microns and smaller.

Typical Lube Oil System The primary parts of a lube oil system are as follows:

Lube Oil Reservoir

Lube Oil Filters

Lube Oil Pumps

Lines from the Reservoir to the Bearings

Lines returning from the Bearing to the Reservoir

The basic operation of a lube oil system is similar for all designs. Lubricating oil (mineral or synthetic) is pumped to the bearings to lubricate and cool the metal to metal surface contacts. The high speed shearing and heat that occurs at the metal to metal contact causes droplet formation and vaporization of some of the oil.

Therefor the return lines to the lube oil reservoir contain not only hot oil but also mist-laden air and vapor. On the return trip to the reservoir, most of the vapor cools and condenses back into oil droplets. Our detailed field and laboratory research have shown that these droplets are extremely small between 0.05 and 0.5 microns. (See table below of particle size and distribution).

Oil Mist Filter 3508094 Has The Features As Follow

● Resistance to high temperature, high pressure.

● High strength, high filter rating, good dirt holding capacity, repeated washing

● Filter layers, ripple neat

● Easy to install

● Strong inner skeleton

● High filtration accuracy

● Large amount of pollution

● Reduce bearing wear

● Extend the use of oil life.

Company Certifications

FAQ

1. Do you Accept OEM service?

Yes! we can manufacture according to your requirement.

2. Can you design filters according to the working condition?

Yes. We have professional R&D department including more than 15 engineers, and we can design the more suitable filters for you.

3. How is the quality of filters?

We have our own brand "AIDA",with more than 20 patent products, and it is very famous in the filtration industry.

We supply high quality filters to PALL, HYDAC, INTERNORMEN, REXROTH, EPE, Parker, Taisei Kogyo, Dollinger, MP Filtri, Vickers, Stauff .So you can rest assure our quality.
