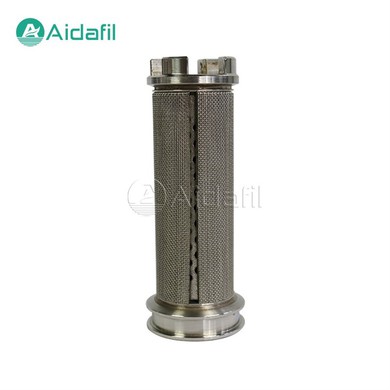

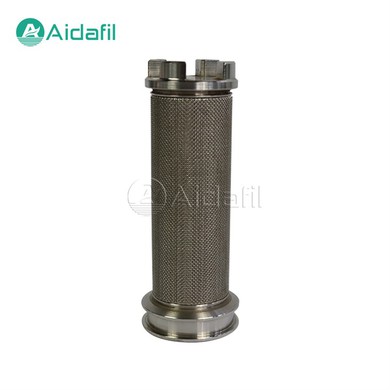

Metal Fiber Filtration Cartridge

Metal fiber filtration cartridge is a filter element made of laminated, sintered metal fibers (stainless steel is standard). The deep filtration structure makes great dirt-holding capacity and high filtering efficiency possible.

Product Details

Metal fiber filtration cartridge is a filter element made of laminated, sintered metal fibers (stainless steel is standard). The deep filtration structure makes great dirt-holding capacity and high filtering efficiency possible. Furthermore, it exhibits eminent performance especially in the removal of gel contaminants in high molecular polymer. The outstanding property ensure increased product quality and higher productivity and lower use-cost.

Product Advantage

· High-precision welding, original standardized technology

· High mechanical strength, good rigidity and extremely stable precision. The high pressure resistance is very outstanding, especially suitable for occasions with high compressive strength and uniform filter particle size requirements

· Low filtration impedance, good permeability

· High pressure resistance, shock resistance, good wear resistance

· Good cold resistance and heat resistance

· Resistant to strong alkaline corrosion, strong acid corrosion and other working environments

· Good comprehensive performance. It has special advantages such as high precision, high efficiency and long service life.

Product Parameter

· Accuracy: 1-300μm

· Standard size: 1000mm x 500mm, 1000mm x 1000mm

· Standard material: stainless steel 316L, 304, 321

· Diameter: 30, 50, 60, 65, 80mm

· Length: L100-1500mm

· Product customization service is available
