Metal Fiber Filtration Media Filter Element
Product Details

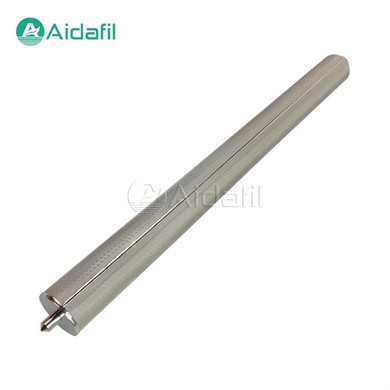

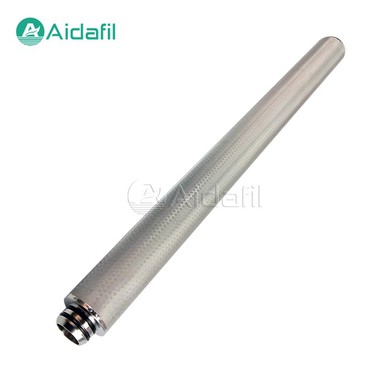

Metal fiber filtration media filter element is made of metal fiber (stainless steel is standard) manufactured by sintering technology and show good performance in filtering. It is suitable for both in-depth filtration and surface filtration. In-depth filtration is mainly used for the filtration of liquids. Surface filtration can be applied in both liquid and gas filtration, especially for fine filtration. It is featured by high porosity and good permeability.
Product Advantage
1.High-precision welding, original standardized technology
2.High mechanical strength, good rigidity and extremely stable precision. The high pressure resistance is very outstanding, especially suitable for occasions with high compressive strength and uniform filter particle size requirements
3.Low filtration impedance, good permeability
4.High pressure resistance, shock resistance, good wear resistance
5.Good cold resistance and heat resistance
6.Resistant to strong alkaline corrosion, strong acid corrosion and other working environments
7.Good comprehensive performance. It has special advantages such as high precision, high efficiency and long service life.
Product Parameter
· Accuracy: 1-300μm
· Standard size: 1000 * 500mm
· Standard thickness: 1.7mm
· Standard material: 316L, 304, 321
· Diameter: 30, 50, 60, 65, 80mm
· Length: L100-1500mm
· Interface: standard interface 215, 220, 222, 226, threaded connections, flanged joint (Other special interfaces can be customized)
· Product customization service is available
Product Application
Mainly used for the filtration of polyester, oil, drugs, food and beverage, chemical products, and also for the filtration of water and air and other media.
