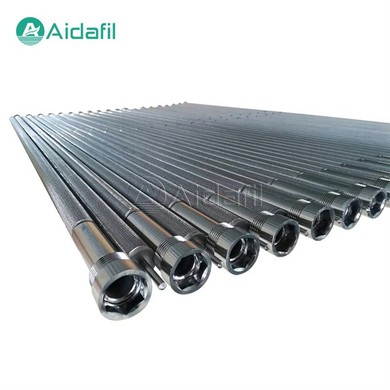

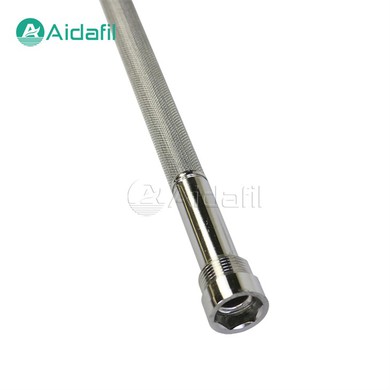

Sintered Metal Filters

Sintered metal filters are durable and conducive to separating particulate matter liquids and gases. They are manufactured by sintering process and have excellent filtering effects and good resistance to high temperature, pressure and corrosion. The cost of sintered metal filters can be low because they can undergo backwashing and repeated use with low filtering efficiency loss.

Features

High porosity and excellent penetration rate, low initial pressure difference, less pressure loss, fast velocity of flow, large flow rate, precise and uniform pore size, uniform fluid distribution, and good retention and purification effect;

Large sewage holding capacity, high filtration accuracy, slow pressure curve rise during use, and long replacement cycle;

Excellent temperature and corrosion resistance, ability to use for a long time in such complex environments as ultra-high temperature, rapid cooling and rapid heating, resistance to corrosion of nitric acid, alkali, organic solvents, and medicines;

High strength, stable precision in ultra-high pressure and differential pressure environment, no fibre shedding even if the liquid and gas are strongly washed and vibrated;

Wide range of filtration accuracy to meet various application requirements;

Produced by unique ultra-precision welding technology, and is firm and durable and has no release of fluid pollution;

Can be treated by backblow cleaning, backwash cleaning, ultrasonic cleaning, chemical method, online steam sterilization, etc.

Can be cleaned and regenerated, and can be used repeatedly after washing, with good economy.

Parameter

·Filtration accuracy: 0.2um-100um

·Porosity: 28-50%
·Compressive strength: 0.5-3mpa

·Temperature resistance: 300. C (wet state)

·Significant working pressure difference: 0.6mpa

·Diameter: 0.5-200mm

·Length: from 1 inches (25mm) to 40 inches (1000mm)

·Interface type: M20 M30 222 226

·Filtration accuracy: 0.2 micron 1, micron 3, microns, 5 microns, 10 microns, 20 microns, 30 microns, 50 microns, 80 microns, and 100 microns.

Applications

For high-precision separation, filtration and purification of various gases and liquid media such as polymer melt, metal melt, food, medicine, wine, beverage, seasoning, hydraulic oil, lubricating oil, fuel oil, ink, cutting fluid, smoke exhaust, natural gas, petroleum liquefied gas, hydrogen, powder, battery liquid, glue, catalyst, air, water treatment and so on.
