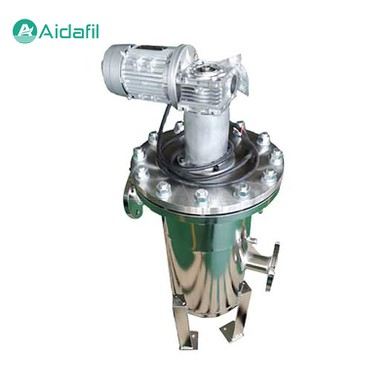

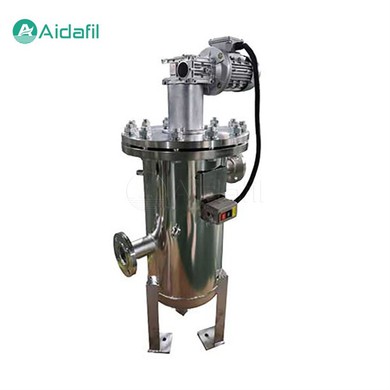

High-Quality Scraper-Type Self-Cleaning Filter

The High-Quality Scraper Type Self-Cleaning Filter is an efficient automatic cleaning filter equipment. It removes particulate impurities on the inner surface of the filter element by mechanical scraping, realizes single-machine continuous online filtration, and the particulate impurities can be recycled without frequent manual cleaning.

Parameters

The magical filtering magic - The working principle of the scraper-type self-cleaning filter

The high-quality scraper-type self-cleaning filter is like a magical magician, it can cleverly separate impurities from the material. When the filter material enters the filter screen through the inlet flange, those impurities larger than the gap between the filter screen will be ruthlessly trapped on the filter side of the screen. It is like a solid line of defense, firmly blocking uninvited guests.

Efficient self-cleaning power - The unique role of the scraper

In this magical device, the scraper plays a crucial role. It is like a sharp sword that can efficiently scrape off the dirt on the filter screen. The scraper material can be selected from 4F plate, nylon brush or steel wire brush, and it is equipped with a high elastic spring, which can be precisely retractable. It is close to the surface of the filter element to ensure that no impurities are missed. When the impurities accumulate to a certain extent, the automatic sewage valve opens, and the impurities are discharged from the bottom sewage outlet. The whole process is completed in one go, making the filtration work easy and efficient.

Intelligent control system - Precise command center

The control system of the high-quality scraper-type self-cleaning filter is like a smart command center, which can automatically calculate and automatically control the working time and steering of the scraper according to the degree of retention of different materials and impurities. When the difference between the inlet pressure and the outlet pressure reaches the pre-set value (the pre-set value can be the experience value or the debugging value), the controller automatically starts the gear reducer to work, and drives the rotating scraper to remove the dirt on the filter screen. Such intelligent operation maximizes the effect of removing impurities and cleaning and filtering, and also minimizes the wear and tear on the filter screen, prolonging the service life of the filter screen.

Excellent filtration performance - The unique advantages of filter elements

The filter element adopts a high-quality metal wedge-shaped filter element, which has the characteristics of large filtration area, long service life and good self-cleaning effect. This is like installing a pair of powerful wings on the filter, allowing it to soar freely in the filtered sky. The large filtration area means that more materials can be processed, which improves work efficiency; the long service life reduces the frequency of replacing the filter element and reduces costs; the good self-cleaning effect keeps the filter in good working condition all the time, without frequent manual cleaning.

Continuous online filtering - Uninterrupted working mode

The scraper-type self-cleaning filter can achieve continuous online filtration on a single machine, which is undoubtedly a huge advantage for those working conditions that require continuous and uninterrupted production. It is like a tireless soldier who always sticks to his post and escorts the smooth progress of production. Particulate impurities can be recycled, no filter consumables are produced, which is both environmentally friendly and economical.

A widely used generalist

The application field of the scraper-type self-cleaning filter is very wide. In the chemical industry, it can be used to filter various chemical raw materials and products; in the field of water treatment, it can effectively remove impurities and pollutants in water; in the food and beverage industry, it ensures the purity and safety of products; in the oil and gas industry, it plays an important role in oil treatment. No matter what field, it can show excellent performance and reliable quality.

Maintenance and upkeep - Keep the filter running efficiently

In order to ensure the long-term and efficient operation of the scraper-type self-cleaning filter, regular maintenance and upkeep are essential. Pay attention to check the condition of the scraper and the filter screen, replace the worn parts in time; clean the sewage outlet regularly to prevent blockage; at the same time, check and maintain the control system to ensure its normal operation.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
