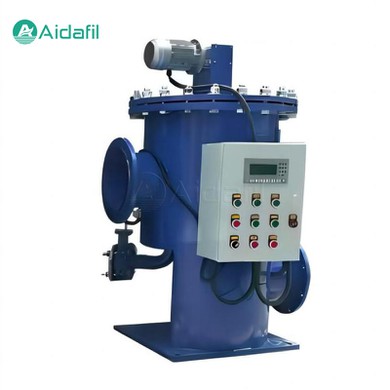

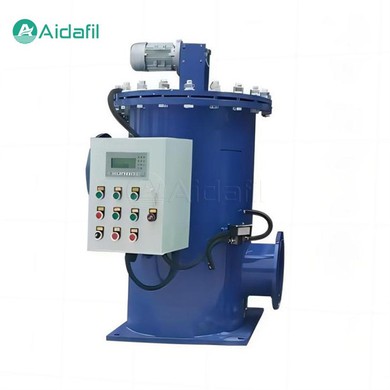

Industrial Water Treatment Multi-Cartridge Automatic Backwash Filter

The industrial water treatment multi-cartridge automatic backwash filter integrates multiple cartridges and automatic backwash functions and is designed to provide a continuous and efficient filtration service while reducing maintenance requirements and downtime. This filter has been designed with the challenges of industrial environments in mind, such as high flow rates, large particle loads, and corrosive media, so it is widely used in many industries.

Parameters

Work flow

1. Filtering Stage

In the filtration stage, the water to be treated containing suspended particles enters the filter body through the water inlet. The water flow is evenly distributed inside each filter cartridge. Each filter element is composed of a fine filter screen or filter cloth that intercepts particles larger than a certain size. Clean water passes through the filter layer of the filter element and flows out of the water outlet, while larger particles are trapped on the inner surface of the filter cartridges.

2. Backwash Stage

As the filtration process progresses, the accumulation of particles on the inner surface of the filter cartridge will gradually increase, which will cause the pressure difference on both sides of the filter cartridge to rise. When this pressure difference reaches a preset threshold or a set filtration time is reached, the filter will automatically switch to backwash mode. During the backwash stage, the controller will issue instructions to control the opening and closing of the sewage valve. The system uses its own water pressure to flush away the trapped particles from the inner surface of the filter cartridge and discharge them out of the filter through the sewage pipe. This process is carried out on a cartridge-by-cartridge basis, ensuring that each filter cartridge can be thoroughly cleaned.

Features

1. Automatic backwash

The most important feature of the industrial water treatment multi-cartridge automatic backwash filter is its automatic backwash function. This function eliminates the need to manually clean the filter element, greatly improving work efficiency and reducing maintenance workload. Automatic backwash ensures that the filter can continue to operate without manual intervention, which is essential for industrial systems that require 24-hour uninterrupted operation.

2. filter element fully cleaned

Traditional filters often have the problem of incomplete cleaning of the filter element, which can lead to a decrease in filtration efficiency and frequent backwashing operations. Through its unique design, the industrial water treatment multi-cartridge automatic backwash filter can achieve comprehensive cleaning of each filter element, thus solving this problem. This not only improves the filtration efficiency, but also extends the service life of the filter element.

2.3. Compact structure

Due to the multi-cartridge design, this filter is relatively small and takes up less space. This makes it particularly useful in space-constrained industrial environments. The compact design also helps to simplify the installation and maintenance process.

4. High flow and high flow rate

The industrial water treatment multi-cartridge automatic backwash filter is able to handle high flow rates of water while maintaining high flow rates. This is an important advantage for industrial applications that require large-scale water treatment. High flow rates and high flow rates mean that the filter can process more water in less time, thus improving overall processing capacity.

Application field

The industrial water treatment multi-cartridge automatic backwash filter has a wide range of applications in many industrial fields, especially in those occasions that require a large amount of filtration and high flow rates. For example, in steel plants, this filter can be used for the treatment of cooling water and circulating water; in chemical plants, it can be used for the filtration of process water; in power plants, it can be used for the pretreatment of boiler feed water. In addition, it can also be applied to other industries such as paper, textile, food and beverage.

Advantages

1. Efficiency

The industrial water treatment multi-cartridge automatic backwash filter adopts a high-strength wedge-shaped wire mesh filter, which has high filtration efficiency. It can effectively intercept particles of various sizes to ensure the quality of the effluent.

2. Ease of operation

The operation of this filter is very simple because it realizes fully automatic operation. The user only needs to set the differential pressure control and timing control parameters, and the filter will be automatically cleaned and maintained. This greatly reduces the workload of the operator.

3. Reliability

The reliability of the industrial water treatment multi-cartridge automatic backwash filter is due to its advanced control system. The signal from the electric control box can precisely drive the backwash mechanism, ensuring the accuracy and reliability of the backwash process. In addition, the structural design of the filter also takes into account the stability of long-term operation.

4. Energy conservation

During the backwashing process, the filter will try to control the backwashing pressure difference between 3 and 4 times the filter pressure difference. This can effectively save energy, because too high backwashing pressure difference will not only increase energy consumption, but also cause damage to the filter element.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
