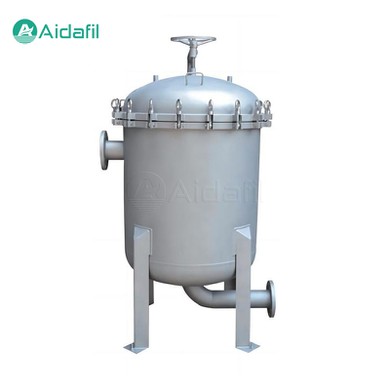

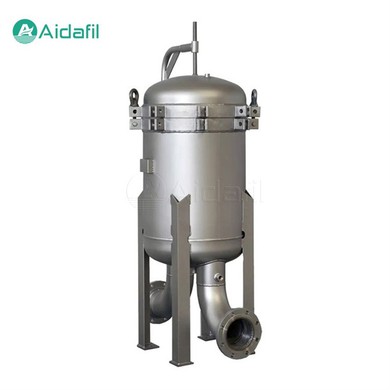

Large Filtration Area Multi-Bag Filter

The large filtration area multi-bag filter consists of a closed tank, multiple filter bags, supporting net baskets, and inlet and outlet pipelines. The number of filter bags can be expanded from 2 bags to 24 bags or more to meet the needs of different flow rates. Each filter bag independently undertakes the filtration task, thus significantly increasing the overall filtration area, which provides the possibility to improve the filtration efficiency.

Design Features

1. Diversified filter bag selection. The large filtration area multi-bag filter supports different configurations from 2 bags to 24 bags to meet various flow and filtration accuracy requirements.

2. Large-area filtration. Due to its unique design, the large filtration area multi-bag filter provides a larger filtration area, thus ensuring high filtration efficiency and a long service life.

3. Quick replacement mechanism. In order to facilitate users' daily maintenance, the large filtration area multi-bag filter is often equipped with quick-opening designs, making the replacement of filter bags very simple and fast.

Advantages

1. High filtration efficiency. The multi-bag filter uses multiple filter bags to filter in parallel, resulting in high filtration efficiency and can meet the filtration needs of most industries.

2. Compact structure and small footprint. The multi-bag filter has a compact structure and a small footprint, making it easy to install and move.

3. Fast filtration speed. The multi-bag filter uses a large filtration area and has a fast filtration speed, which can meet the requirements of filtration speed in the production process.

4. Easy maintenance. The multi-bag filter is easy to replace, and the filter bags are made of various materials, which can meet the filtration needs of different industries.

5. Strong adaptability. The multi-bag filter is suitable for filtering various viscosities, temperatures, and corrosive liquids, with strong adaptability.

Parameters

Multi-Bag Model Table

Application field

The large filtration area multi-bag filters are used in many industries due to their efficient filtration performance and convenient maintenance.

1. Pharmaceutical industry. Used to ensure water safety and sterility requirements during the production of pharmaceuticals.

2. Food and Beverage. Remove microorganisms and suspended solids during the production process to ensure the pure taste and food safety of the product.

3. Chemical industry. plays a key filtration role in the purification and recycling of chemical solutions.

4. Oil and Gas. Helps remove solid particles from drilling fluids, protect equipment, and improve work efficiency.

Multi-bag filter selection precautions

1. Filter bag material. According to the nature of the filter medium, choose the appropriate filter bag material, such as polyester, polypropylene, nylon, etc.

2. Filter bag specifications. Select the appropriate filter bag specifications according to the filtration accuracy, flow rate, and solid particle size.

3. Number of filter bags. Choose the appropriate number of filter bags according to production requirements and filtration effect.

4. Equipment size. Choose the appropriate equipment size according to the installation location and equipment space.

5. Quick-opening design. Choose the appropriate quick-opening design according to the frequency and convenience of replacing the filter bag.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
