Powerful Security Filter Device

A powerful security filter device, as the name suggests, is a filter used to ensure water quality safety. It is mainly used to remove tiny particles, suspended solids, colloids and other impurities in liquids to ensure the normal operation of subsequent water treatment equipment and improve the quality of the final effluent.

Function

The main function of the powerful security filter device lies in the word "security", that is, to protect the safe operation of the subsequent water treatment equipment. After the liquid has been filtered through multi-media pretreatment, although most of the impurities have been removed, there are still some fine particles and suspended solids. If these tiny impurities directly enter the subsequent equipment, such as reverse osmosis membrane filters, etc., they will cause damage to the membrane components and reduce the service life of the equipment. The security filter is the "gatekeeper" of these tiny impurities, ensuring that the liquid entering the subsequent equipment is clean and free of impurities.

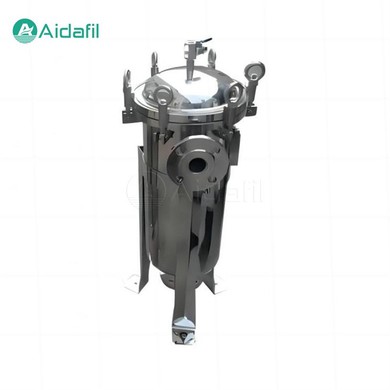

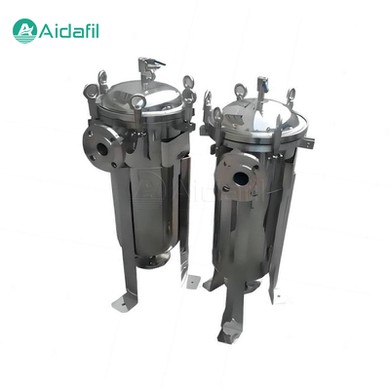

Structure

The powerful security filter device is usually composed of cylinders, filter elements, inlet and outlet, brackets, etc. Among them, the filter element is the core component of the security filter, usually using high-precision stainless steel filters or filter elements made of PP, PTFE, etc. These filter elements can effectively intercept tiny particles and suspended solids in liquids.

Working principle

When the liquid enters the security filter, it is first pretreated to remove most of the impurities. Then, the liquid passes through the filter element, and the tiny particles and suspended matter are intercepted on the filter element, while the clean liquid flows out through the filter element. As the filtration progresses, the impurities on the filter element gradually increase, resulting in an increase in filtration resistance. At this time, the filter element needs to be cleaned or replaced.

Parameters

Application field of security filter

The powerful security filter device is widely used in various fields due to their efficient and reliable filtration performance.

- Food industry. In food production, security filters are used to remove harmful substances such as microorganisms and bacteria from water to ensure the hygiene and safety of food.

- Pharmaceutical industry. In the pharmaceutical process, security filters are used to prepare pure water for injection, bottle washing, etc., to ensure the quality of medicines.

- Electronics industry. In the electronics manufacturing industry, security filters are used to prepare ultrapure water and to clean precision components such as semiconductors and integrated circuits.

- Chemical industry. In the production process of chemicals, security filters are used to remove impurities from raw materials and improve product quality.

- Petroleum industry. In the process of oil extraction and processing, security filters are used to remove impurities and moisture from crude oil and improve the quality of oil.

Selection and use of security filters

- Selection

When selecting a security filter, it is necessary to comprehensively consider factors such as the nature of the liquid, filtration accuracy requirements, and processing capacity. At the same time, it is also necessary to choose reputable brands and manufacturers to ensure the quality of the equipment and after-sales services.

- Use

When using a security filter, it is necessary to operate according to the operating procedures, and regularly check and clean the filter elements to ensure the normal operation and filtration effect of the equipment. At the same time, attention should also be paid to the maintenance and maintenance of the equipment to prolong the service life of the equipment.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
