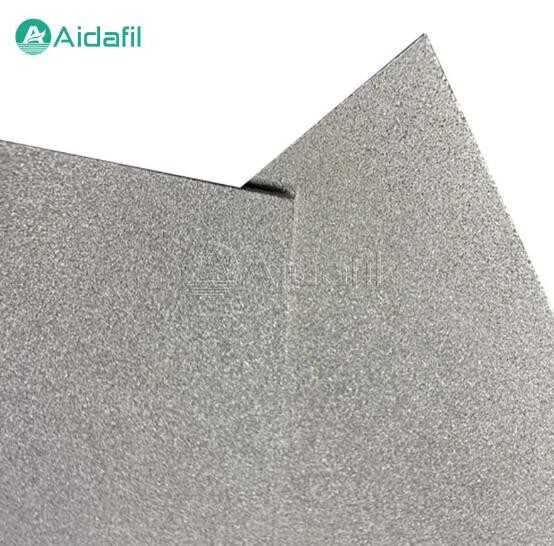

The titanium powder filter plate is a specialized filtration medium widely used in industries that require high-performance filtering solutions, particularly where strength, corrosion resistance, and chemical compatibility are essential.
These filter plates are made from sintered titanium powder, forming a porous structure with precise pore sizes that allow for efficient separation of solids from liquids or gases.
This will explore in detail how the titanium powder filter plate works, from its structure and operating principle to its functional benefits and applications.
Structure and Composition
A titanium powder filter plate is manufactured by compressing pure titanium powder into a mold and then sintering it at high temperatures in a vacuum or inert atmosphere.
The sintering process bonds the titanium particles together without melting them, creating a rigid, porous structure. The size of the pores can be precisely controlled during manufacturing by adjusting the powder particle size and sintering parameters.
Key structural features:
Uniform Porosity: The interconnected pores provide a consistent and controlled path for fluid flow.
High Strength: Despite being porous, the sintered titanium structure is mechanically robust and can withstand high pressure differentials.
Corrosion Resistance: Titanium's natural oxide layer gives it superior resistance to corrosion, especially in acidic or saline environments.
Working Principle
The working mechanism of a titanium powder filter plate is based on depth filtration and surface filtration.
Depth Filtration
As the fluid passes through the porous structure of the filter plate, particles are trapped within the depth of the material. This is due to the tortuous path created by the sintered pores, which forces the fluid to change direction multiple times, increasing the chances of capturing suspended solids.
Surface Filtration
Larger particles are unable to pass through the surface pores and are therefore retained on the surface of the filter plate, forming a filter cake that can enhance filtration efficiency over time.
This dual mechanism allows the titanium powder filter plate to:
Achieve high filtration efficiency.
Remove both coarse and fine particles.
Maintain steady flow rates without significant clogging (when properly maintained).
Operation Process
Installation: The titanium filter plate is installed in a filtration system, such as a cartridge housing, disc filter, or plate-and-frame assembly.
Filtration Start: The fluid (liquid or gas) containing impurities is introduced into the system and directed toward the filter plate.
Separation: As the fluid flows through the porous titanium media, suspended solids are captured within the pores or on the surface.
Clean Filtrate Collection: The clean, filtered fluid exits from the other side of the plate and is collected or further processed.
Backwashing or Cleaning: Once the filter becomes clogged with trapped particles, it can be cleaned by backflushing with a clean fluid, ultrasonic cleaning, or chemical cleaning (depending on the application).
