Filter Oil Machine
Product Details

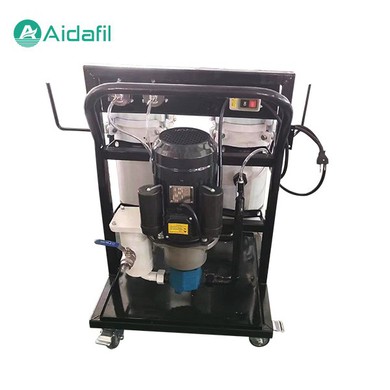

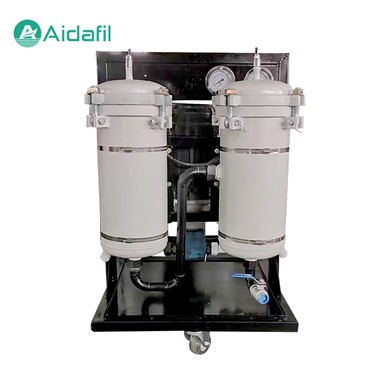

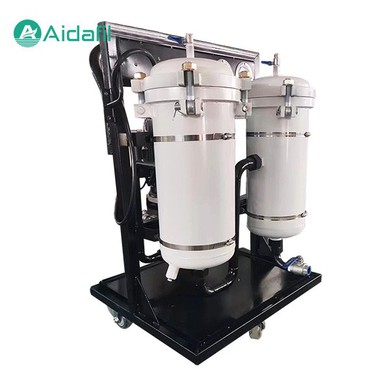

Transformer Oil Filtration Machine for Coalescence Dehydrated Oil Purifier is specially designed for degassing, dehydration and filtration of transformer insulating oil outside the site. It can quickly remove free water, trace moisture, gas, particles and other pollutants. At the same time, the installed trailer can run on roads and off-roads. The special engineering design function maximizes the water extraction rate of our system, and the top components and technology ensure the maintenance-free operation and performance for many years.
Applications:
It has an efficient dehydration effect, especially suitable for the separation of a large amount of water and oil, and its dehydration ability is far better than that of centrifugation, which can remove all the oil-water emulsion medium structures.
Features:
Through the filtration and particle filtration system, the cleanliness of the medium can be controlled in the stable state required by the system to ensure the cleanliness. Small energy and low operating cost is available. Excellent system configuration and continuous strong online running performance.
Parameters
| Model | AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) | 25 | 32 |
40 |
50 | 63 | 100 | 150 |
| Rated pressure(MPa) | 0.6 | ||||||
| Mpa(MPa) | ≤0.02 | ||||||
| Coarse filter precision(μm) | 100 | ||||||
| Grade 1 filter rating(μm) | 10、20、40 | ||||||
| Grade 2 filter rating(μm) | 3、5、 10、S-W | ||||||
| Differential pressure | 0.2Mpa | ||||||
| Working temperature(°C) | 5-80 | ||||||
|
Recommended viscosity(cSt) |
10- 160 | ||||||
|
Voltage(V) |
AC 380V(Three-phase)、50Hz | ||||||
| Motor power(kw) | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 | 2.2 | 3.0 |
| Weight(kg) | 46 | 78 | 90 | 96 | 102 | 120 | 160 |
| Dimensions(mm) | 520x350 x950 | 520 x350x950 | 720x 680 x 1020 | 720 x<680 x 1020 | 720 x 680x 1020 | 720x 750x 1020 | 720x750x 122 |
