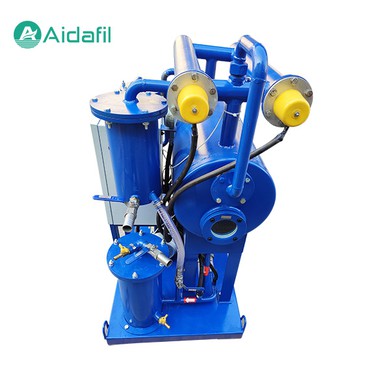

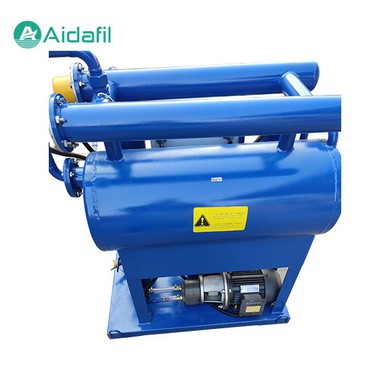

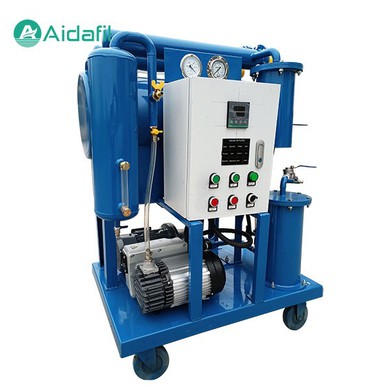

Transformer Oil Filtration Machine
Product Details
The transformer oil filter is a mechanical equipment with solid impurities and moisture in oil filtration, which improves oil quality and improves the insulation strength of transformer oil. It is used in power plants, power stations, power companies, metallurgy, petrochemicals, railways and other industrial and mining enterprises to purify and handle unqualified electrical insulating oils for industrial and mining enterprises. It can also make vacuum pumps on insulating power equipment and vacuum dry electrical equipment.
1. FUNCTION
The main function of transformer oil filtration machine signal and double stage high-efficient vacuum oil purifier is to remove free and dissolved water, gases, and mechanical impurities from insulating oils so as to ensure its purity and improve its insulation property. It is suitable for the application to oil treatment 500KV super-voltage transforming equipment and 220KV transformers. It is also suitable for the treatment of capacitor oil, transformer oil and freezer oil.
2.TECHNICAL FEATURES
Doubles the evaporation area by adopting Huazheng horizontal double vacuum separation technology efficiently and reliability thorough removal of gas in the oil by using coalescing oil spray separator.
Adoption of American fine filter element, fineness: 5μm, ß≥1000
Low noise and long life of the oil transport system
Adoption of American heating technique with the way of thermal radiation, constant temperature control.
The use of float valve and photoelectric oil level control, eliminates supervision
Adoption of French de-foaming technique to avoid oil leaking
Controlled digitally and automatically by PLC
Major electric apparatus are imported from America, so the controlling system safe and reliable

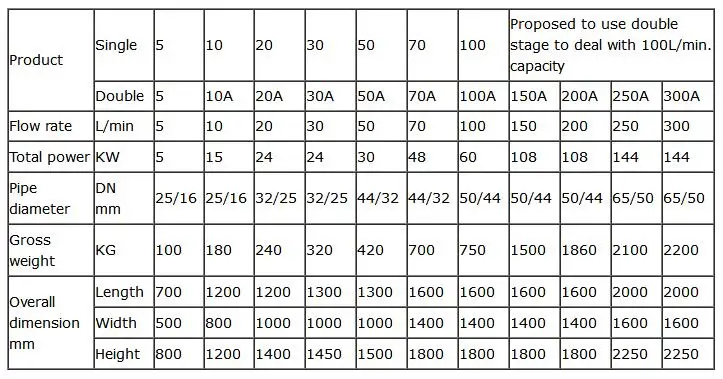

3.oil filter machine Specification
