Vertical Pressure Leaf Filter LDYP-8
Product Details

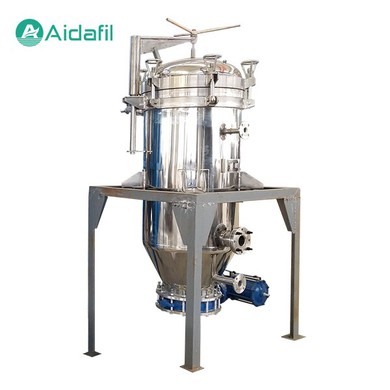

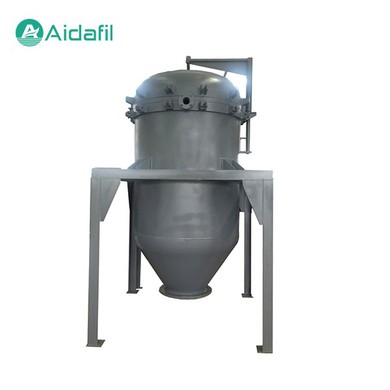

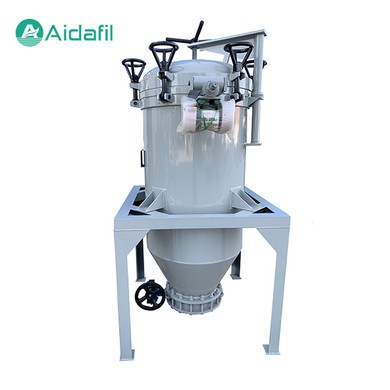

Vertical Pressure Leaf Filter LDYP-8 is liquid filtration system consisting of many leaf-shaped filter elements that are stacked inside a vertical vessel. Vertical pressure leaf filter has been specifically designed to provide a large filtration area which is made possible due to the shape of their filter leaf elements. These vertical pressure leaf filter systems produce high filtrate clarity after the clarification run. Different types of filter aids can be used in vertical pressure leaf filters to improve filtrate quality.
Applications
Edible oil processing (crude oil, bleached oil, winterized oil)
Glucose, sweeteners, sugar, fruit juice production
Liquid sulfur filtration
Chemicals and oleochemicals
Organic and inorganic salts, amines, resins, and bulk drugs
Mining applications,
Metal plating bath filtration
Mine cleaning in the oil and gas market
Advantages
Under the same filtration area of the plate and frame filter, the filtration speed is increased by 2-3 times.
Stainless steel filter element, so no recurring costs for filter cloths, cleaning and maintenance.
The filter cake can be discharged automatically in a very short time without opening the filter from the top, saving a lot of manpower and time.
Compact and lightweight, thus saving a lot of floor space and supporting structures.
Pressure leaf filters can be fully automated without human intervention.
Technical parameter
| Model | Filtering area(㎡) | Cylinder diameter(mm) | Inlet | Outlet | Overflow port | Slag outlet(mm) | Height(mm) | Weight(kg) |
| LDYP-4 | 4 | 550 | DN50 | DN80 | DN40 | 300 | 2010 | 600 |
| LDYP-8 | 8 | 700 | DN50 | DN80 | DN40 | 400 | 2425 | 800 |
| LDYP-10 | 10 | 800 | DN50 | DN80 | DN40 | 400 | 2630 | 900 |
| LDYP-15 | 15 | 900 | DN50 | DN80 | DN40 | 400 | 2650 | 1100 |
| LDYP-20 | 20 | 1100 | DN50 | DN80 | DN40 | 400 | 3000 | 1500 |
| LDYP-30 | 30 | 1200 | DN50 | DN80 | DN40 | 500 | 3050 | 1750 |
| LDYP-40 | 40 | 1300 | DN65 | DN80 | DN50 | 500 | 3280 | 2100 |
| LDYP-50 | 50 | 1400 | DN65 | DN80 | DN50 | 600 | 3450 | 3000 |
| LDYP-60 | 60 | 1500 | DN65 | DN80 | DN50 | 600 | 3630 | 3100 |
| LDYP-80 | 80 | 1600 | DN65 | DN80 | DN50 | 700 | 3860 | 3600 |
