This machine using a coalescence separation filter element, integrates fine filter, high-efficiency Anti-emulsification and
dehydration into one body. They can remove large water without heating, creates the fastest dehydration speed in domestic at
present. This machine can quickly separate water from the oil which even contains half water, to attain cleanness of NAS6 grade.
1
/

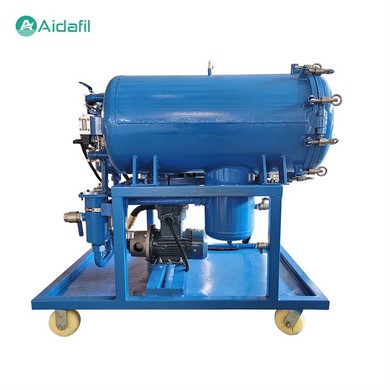

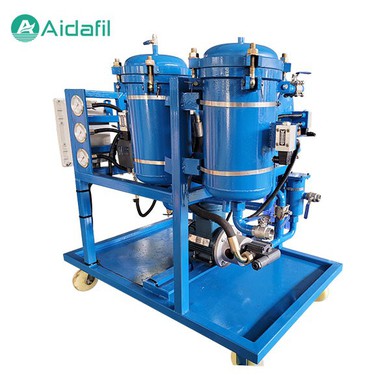

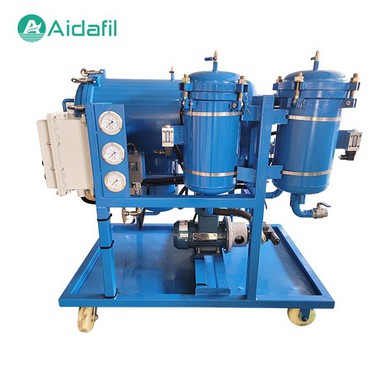

Waste Turbine Oil Filter Machine
Product Details
It gathers the advantages of sedimentation, vacuum separation, absorption, coacervation separation and multi-step filtration. It's highly effective ability of removal of impurity, dewatering, degassing and breaking emulsion makes it an ideal machine for processing turbine oil and low viscosity lubrication oil. It is widely used in aspects of electricity, chemical engineering, paper-making, metallurgy etc. it can implement emulsion braking, dehydration, and remove water, particular matter, colloids, acid, soap and so on.
Application
Characteristics
1.Precise multi-stage filtration system can remove different kinds of impurities. It has the characteristics of high quality filtering materials with high contaminants containing ability, long service life.
2.It uses the vacuum flash vaporization technology, coacervation and separating technology and pellicle vaporization technology for efficient emulsion braking and dehydration.
3.Safe and reliable electrical heating system ensure even and stable oil temperature.
4.Advanced infrared liquid level control system and pressure protection device keep the safe operation.
5.It can be process turbine oil and low viscosity lubricating oil online.
Product Description
| Technical Parameter | |||||||||
| Parameter | Unit |
TL- 10 |
TL- 20 |
TL- 30 |
TL- 50 |
TL-80 |
TL-100 |
TL-150 |
TL-200 |
| Flowrate |
L/min |
10 | 20 | 30 | 50 | 80 | 100 | 150 | 200 |
| Vacuum Range | Mpa |
-0.06~-0.095 |
|||||||
| Working Pressure | Mpa | ≤0.5 | |||||||
|
Working Temperature |
℃ | ≤30~80 | |||||||
| Heating Power | KW | 18 | 24 | 30 | 36 | 48 | 60 | 81 | 90 |
| Total Power | KW | 20 | 26 | 33 | 39 | 52 | 64 | 87 | 97 |
| Inlet(outlet)Diameter | mm | Φ25 | Φ32 | Φ32 | Φ32 | Φ42 | Φ42 | Φ48 | Φ60 |
| Net Weight | Kg | 350 | 380 | 430 | 550 | 600 | 800 | 850 | 1000 |
| Overall Dimensions | L/mm | 1300 | 1300 | 1350 | 1400 | 1450 | 1500 | 1550 | 1700 |
| W/mm | 850 | 900 | 950 | 1000 | 1000 | 1100 | 1150 | 1400 | |
| H/m | 1500 | 1600 | 1700 | 1700 | 1700 | 1750 | 1800 | 1850 | |
| Performance Index | |
| Item | Index after processing |
| Content of granule | ≤G6(NAS1638) |
| Content of water | ≤80ppm |
| Demulsifying Value | ≤15min(GB/T7605) |
| Flash point | >172℃(GB/T3536) |
| Rust Test in Liquid Phase | GB/T3536 |
|
Mechanical Impurities |
(GB/T 511)No |
