Advanced Control Technology Automatic Self Cleaning Filter

In today's industrial society, the importance of water quality to production and life is self-evident. Whether it is industrial production lines or daily water use by residents, it needs to undergo strict purification treatment. As a piece of efficient water treatment equipment, the advanced control technology automatic self cleaning filter is gradually becoming the first choice in all walks of life. It can not only effectively remove various mechanical impurities in water, but also ensure the safe and reliable operation of system equipment.

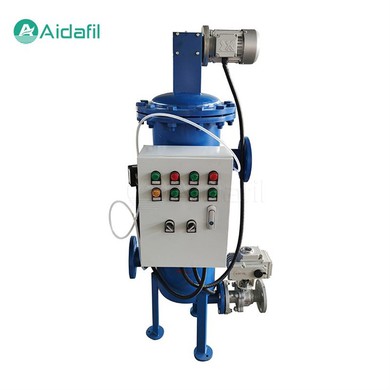

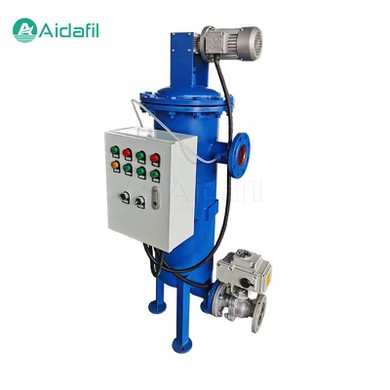

The advanced control technology automatic self cleaning filter is composed of a shell, a filter cartridge, a cleaning mechanism, a controller, a cleaning motor and an electric ball valve. Its working principle is to intercept impurities in the water through the filter cartridge, and then clean the filter cartridge regularly through the cleaning mechanism to ensure the normal operation of the filter. When the pressure difference between the water inlet and outlet of the filter reaches the set value, the controller will send a signal to start the cleaning motor to drive the cleaning mechanism to brush the filter cartridge, and the electric ball valve will open at the same time to discharge dirt. The whole process does not require manual intervention and realizes fully automated operation.

Advantages and characteristics

1. Automatic cleaning to reduce maintenance costs

The automatic self cleaning filter can automatically determine the cleaning timing and clean according to the pressure difference between the inlet and outlet water. This automatic cleaning function greatly reduces manual maintenance costs and improves the service life of the equipment.

2. High-precision filtration to ensure water quality safety

The filter cartridge is made of special materials with high strength and corrosion resistance. At the same time, the pore size of the filter cartridge can be adjusted according to actual needs to meet the filtration requirements of different water quality. This ensures the filtration accuracy and water quality safety of the filter.

3. Continuous operation and strong adaptability

The automatic self cleaning filter can adapt to a variety of complex water supply environments, especially systems that operate continuously without shutdown. It can maintain stable working performance even under severe water quality conditions.

4. Energy-saving and environmentally friendly, reducing energy consumption

Compared with traditional filter equipment, the automatic self cleaning filter adopts advanced energy-saving technology, which reduces energy consumption. At the same time, since the cleaning process does not require the use of chemical cleaning agents, it reduces environmental pollution.

Parameters

Application scenarios

1. Water Treatment Plants

In water treatment facilities, the automatic self cleaning filter is used to remove suspended solids, bacteria, and other contaminants from raw water before it is deemed suitable for drinking, industrial use, or discharge. The filter ensures a consistent supply of clean water, especially in areas with high pollution levels.

2. Industrial Processes

Many industrial processes require clean fluids to prevent equipment damage and maintain product quality. For example, in the food and beverage industry, the automatic self cleaning filter is used to protect piping systems and machinery from clogging due to particles in the fluids.

3. Hydrocarbon Processing

In the oil and gas industry, the automatic self cleaning filter is used to remove impurities from produced water, refinery feedstocks, and gas streams. It helps in maintaining the efficiency of downstream processes and equipment.

4. Power Generation

Coal-fired and nuclear power plants use the automatic self cleaning filter to protect boilers from scaling and maintain efficient operation. The filter removes ash and other particulates that could reduce the plant's efficiency and lifespan of the boiler.

5. Pharmaceutical Industry

In pharmaceutical manufacturing, clean water and solvents are essential. The automatic self cleaning filter ensures that the production process is not disrupted by water or solvent contamination, which could affect the quality and safety of the pharmaceutical products.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
