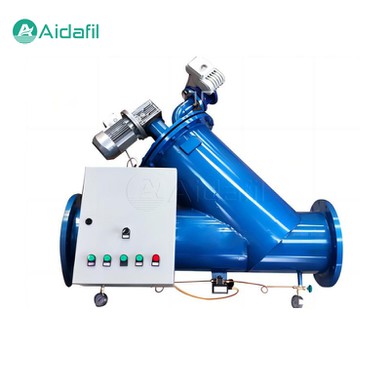

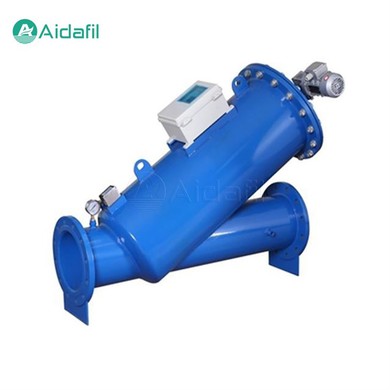

Intelligent Reliable Y-Type Self Cleaning Filter

The intelligent reliable Y-type self cleaning filter is an efficient, automated, reliable and easy-to-maintain filtration equipment. It uses advanced self-cleaning technology, which enables fully automatic filtration, cleaning, regeneration and recycling. It has been widely used in various industrial fields and has become an indispensable filtration equipment in modern chemical, power, pharmaceutical, food, textile and other industries.

Design features

1. Filter design. The Y-type self cleaning filters typically use a Y-type structure, which can provide a larger filtration area while reducing pressure loss.

2. Self-cleaning function. The core advantage of this filter is its self-cleaning mechanism. The built-in brush system can continuously or periodically clean the filter during the operation of the filter to remove impurities attached to the filter.

3. Drain valve. The filter is equipped with a solenoid or electric drain valve. When the cleaning process is completed, the valve will open to discharge the collected impurities.

4. Intelligent control. Modern Y-type self cleaning filters are usually integrated with an intelligent control system that monitors the status of the filter through a pressure differential sensor and automatically starts the cleaning program according to the preset pressure differential value.

5. Material selection. The filter and body materials are often made of corrosion-resistant stainless steel (304 or 316L) to ensure that the filter can operate stably in harsh environments.

Parameters

Working principle

When the Y-type self cleaning filter is working, the fluid enters from the filter inlet and flows through the cylindrical filter screen. Impurities are trapped on the filter screen, while the cleaning fluid flows out from the outlet. As the use time increases, the impurities accumulated on the filter screen gradually increase, resulting in an increase in the pressure difference between the inlet and the outlet.

When the pressure difference reaches the set value, the pressure difference switch triggers the control system to start the self-cleaning program. The built-in brush system is driven by the motor to rotate, and the impurities on the filter screen are brushed away. At the same time, the sewage valve is opened, and the brushed dirt is discharged through the sewage outlet. After cleaning, the brush stops rotating, the sewage valve is closed, and the filter returns to the normal filtration state.

Performance advantage

1. Automated operation

Reduces the need for manual cleaning, saving maintenance costs and time.

2. Continuous operation

The self-cleaning function allows the filter to operate most of the time, reducing downtime due to maintenance.

3. Extend equipment life

Removing particulate impurities helps protect other sensitive equipment in the system, thus prolonging the service life of the entire system.

4. Energy-saving and environmentally friendly

Compared with traditional manual cleaning methods, self-cleaning filters can more effectively save water resources and energy consumption.

5. Easy to monitor

The intelligent control system can monitor the status of the filter in real time, making it easy for the operator to understand the operation of the equipment and perform remote control.

Application

The intelligent reliable Y-type self cleaning filter has been widely used in chemical, electric power, pharmaceutical, food, textile, papermaking and other fields. For example, in the power industry, some power station water intake equipment, cooling water circulation system, sewage treatment system, etc. use self-cleaning filters; in the chemical industry, such as polyvinyl chloride plants, synthetic ammonia plants, spandex plants, etc., all use this filter for water treatment, achieving good results.

When selecting a Y-type self cleaning filter, factors to consider include fluid type, flow rate, type and size of impurities, working pressure and temperature, etc. In addition, regular inspection and maintenance of the filter is also the key to ensuring its long-term stable operation.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
