High-Strength Housing Duplex Bag Filter

Name: High-Strength Housing Duplex Bag Filter
Brand: AIDA
SKU: 238315375

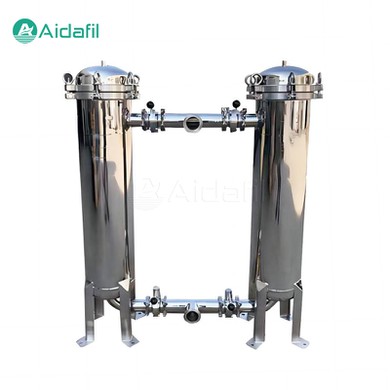

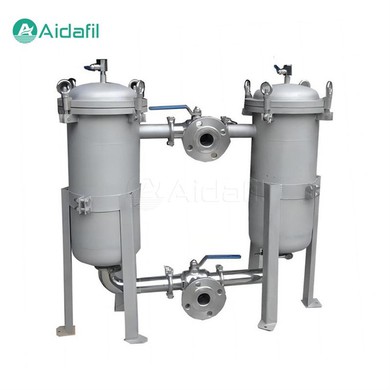

The high-strength housing duplex bag filter consists of two identical filter vessels, each containing multiple bags of filter media. The high-strength housing is constructed from durable materials, such as stainless steel or carbon steel, ensuring exceptional corrosion resistance and durability.

Product Details

The high-strength housing duplex bag filter is a robust and efficient industrial water filtration equipment designed to remove impurities and contaminants from water and other liquids used in various industrial processes. This filtration system consists of two bag filters operating in parallel with the high-strength housing, ensuring continuous filtration and high-flow rates.

The filter bags are the heart of the duplex bag filter system. These bags are made from high-quality materials, such as polypropylene, polyester, or nylon, and are available in various micron ratings to accommodate different filtration requirements.

Features

The high-strength housing duplex bag filter incorporates several key features that contribute to its effectiveness in industrial water filtration. The high-strength housing provides sturdy support for the filter bags, enabling the filtration system to withstand high-pressure conditions commonly found in industrial settings. This housing is constructed using durable materials such as carbon steel, stainless steel, tailored to the specific requirements of diverse industrial applications.

Furthermore, this filtration system is equipped to handle high flow rates efficiently. Each bag filter possesses a large filtration area, allowing it to process substantial volumes of liquid continuously. This capacity is particularly advantageous in industries where large quantities of fluid are utilized, such as in chemical processing, food and beverage production, and pharmaceutical manufacturing.

The parallel operation of the two filter vessels is a key feature of the duplex bag filter. This design allows for continuous filtration, even during maintenance and cleaning operations. When one vessel is being cleaned or maintained, the other vessel continues to operate, ensuring uninterrupted filtration and minimizing downtime.

Design

The high-strength housing duplex bag filter emphasizes simplicity and user-friendliness, facilitating easy installation and maintenance. The filtration system features two inlet and outlet connections, enabling seamless integration into existing process piping. Additionally, the bag filters are designed for convenient replacement, and the entire system can be cleaned and serviced without the need for specialized tools or equipment, enhancing operational efficiency and reducing downtime.

Parameters

Material	Stainless steel or carbon steel
Filtration areas	5.0 m², 10 m², 15 m², 20 m², 25 m², 30 m², 40 m²
Filtration accuracy	0.3, 0.5, 1.5, 10, 15, 25, 50, 100, 200, 300, 400 μm
Design pressure	0.6 Mpa
Flow rate	1 ~ 200 m³/h
Working temperature	5 ~ 80°C
Connections	Flange
Control way	Differential Pressure / PLC Timer / Manual
Rated operating voltage	3PH 380V 50Hz

Operation

The operation of the high-strength housing duplex bag filter is straightforward and reliable. As the fluid enters the housing through the inlet connection, it passes through the bag filters. The filter bags effectively trap impurities and contaminants, allowing the clean fluid to proceed to the outlet connection. When the filter bags become clogged or saturated with contaminants, they can be effortlessly replaced, ensuring uninterrupted filtration of the processed fluid.

Applications

The versatility of the High-Strength Housing Duplex Bag Filter renders it suitable for a wide range of industrial applications. It finds use in industries including chemical processing, oil and gas, food and beverage production, pharmaceutical manufacturing, and wastewater treatment. The filtration system is particularly valuable in applications necessitating the filtration of large volumes of water or other liquids. Specific applications include:

Filtration of cooling water in power generation plants

Removal of particulate matter from process water in chemical manufacturing

Filtration of juices and syrups in the beverage industry

Removal of impurities from hydraulic fluids in industrial machinery

Filtration of wastewater in municipal and industrial treatment plants

Benefits

The High-Strength Housing Duplex Bag Filter offers several benefits, including:

1. Improved Product Quality. The filter ensures precise filtration, resulting in improved product quality and reduced contamination risks.

2. Increased Efficiency. The filter's high flow rates and reliable operation minimize downtime and increase overall efficiency.

3. Reduced Maintenance Costs. The filter's easy maintenance and replaceable filter bags reduce maintenance costs and downtime.

4. Compliance with Regulatory Standards. The filter ensures compliance with regulatory standards, minimizing the risk of non-compliance and associated penalties.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
