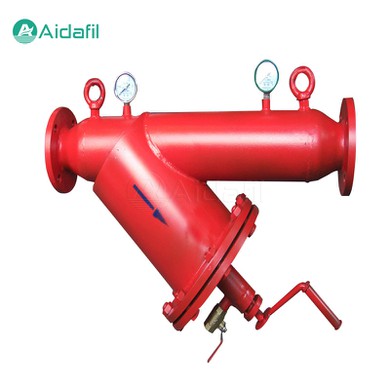

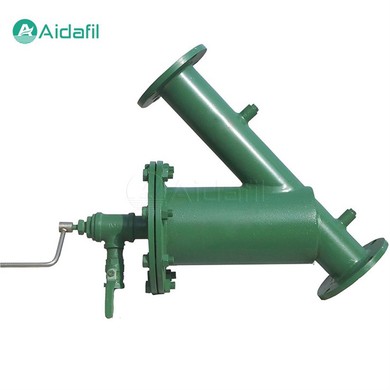

Low-Cost Hand Brush Y-Type Filter

The low-cost hand brush Y-type filter is a clever simplification and innovation of the automatic cleaning and filtration technology. It proposes a solution for instant cleaning and online operation to solve the problems of cumbersome cleaning of traditional filters and easy to affect the production process. This design not only reduces the complexity of equipment maintenance, but also ensures the continuity and reliability of the industrial water system, which is an important advance in modern industrial water treatment technology.

Parameters: Indication of high performance

Working principle: Differential pressure drive, easy cleaning

- Differential pressure monitoring. The filter has a built-in precision differential pressure monitoring system. When the accumulated impurities on the filter screen cause the pressure difference between the inlet and outlet to reach the preset value, a cleaning signal is triggered.

- Hand crank operation. No complicated automated control is required, the operator simply opens the sewage valve located at the bottom of the filter, rotates the handle for 3 to 4 weeks, and the built-in brush will move along the surface of the filter screen, effectively removing accumulated dirt.

- Continuous operation. The entire cleaning process does not require interruption of water flow, and the equipment can continue to operate, ensuring the continuity of the production process.

Structural analysis: Seiko meticulous, excellent material

- Shell structure. The shell is made of high-quality carbon steel or stainless steel customized according to customer needs, ensuring the durability and good corrosion resistance of the equipment.

- Stainless steel filter. The wedge-shaped stainless steel mesh is used, and its special structure is easier to remove impurities. Compared with punched mesh or textile mesh, it has stronger filtration efficiency and longer service life.

- Brushing system. The built-in stainless steel brush has good elasticity, high strength and corrosion resistance. The matching brush frame structure is precise, ensuring that the brushing action is uniform and powerful, and effectively removes every inch of impurities on the filter screen.

- Handle design. The external handle design is user-friendly and easy to operate, allowing even non-professionals to easily complete the cleaning operation.

Application advantages: Multi-domain coverage, superior performance

- Widely applicable. Suitable for industrial cooling water systems, seawater desalination, food processing, pharmaceuticals, chemicals, and other fields, especially for systems that operate 24 hours a day.

- Efficient and energy-saving. Online cleaning requires no downtime, reducing production interruptions and saving energy and labor costs.

- Easy maintenance. The cleaning cycle is extended, the maintenance workload is reduced, and the maintenance cost is reduced.

- Environmental safety. Effectively remove impurities from water, protect subsequent equipment from pollution, and ensure the environmental protection and safety of the production process.

Maintenance: Ensure long-term efficient operation

- Regular inspection. Although the hand brush Y-type filter is designed for low-maintenance operation, it is still necessary to check the differential pressure indicator regularly to ensure timely cleaning.

- Frequency of sewage discharge. According to the actual usage and water quality conditions, the cleaning and sewage cycle should be reasonably arranged to avoid excessive accumulation of impurities.

- Brush maintenance. Regularly check the wear of the brush and replace it if necessary to maintain the best cleaning effect.

- Anti-rust maintenance. For carbon steel shells, regular anti-rust treatment should be carried out to prolong the service life of the equipment.

The low-cost hand brush Y-type filter acts as the precision guard guarding the heart of industry. With its efficient and convenient cleaning method, the hand brush Y-type filter has become an indispensable water purification device in many industrial fields. It not only improves the efficiency of industrial production, but also plays an important role in maintaining environmental friendliness and production safety. With the continuous progress of technology and the widening of application fields, this filter will continue to play its unique value in ensuring the healthy operation of industrial circulating water systems.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
