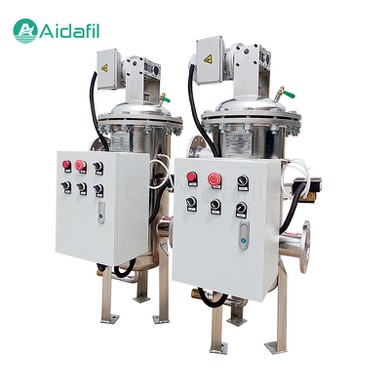

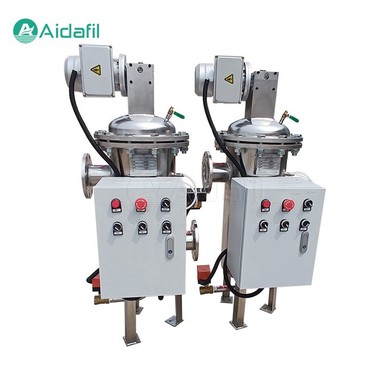

Stable Performance Automatic Self-Cleaning Filter

The Stable Performance Automatic Self-Cleaning Filter is mainly used to clean and filter impurities and particles in water. It acts as a kind of high-efficiency filtration equipment widely used in modern industrial field. The self-cleaning filter adopts advanced automatic cleaning technology, which can automatically remove the dirt on the filter screen during the filtration process to ensure the stability and durability of the filtration effect. A stable performance automatic self-cleaning filter is widely accepted in industries, agriculture, environmental protection, and other fields, providing significant advantages for applications with high water quality requirements.

Working principle

When the automatic self-cleaning filter is working, the fluid enters the inside of the filter from the inlet, and is intercepted by solid particles and other impurities when passing through the filter screen. As the filtration process progresses, the accumulated dirt on the filter screen gradually increases, and the pressure difference increases. When the pressure difference reaches a preset value, the control system will start the cleaning program. At this time, the motor drives a brush or other cleaning device to clean the filter screen, and the dirt attached to the filter screen is brushed off and discharged from the body through the sewage valve. After cleaning, the equipment returns to the normal filtering state.

Parameters

Features and advantages

1. High degree of automation

The automatic self-cleaning filter is equipped with an intelligent control system, which can automatically start the cleaning program according to the set conditions, reducing manual intervention.

2. Continuous working performance

During the cleaning process, the filter can maintain an uninterrupted working state to ensure fluid continuity and stability.

3. High-efficiency filtration

The use of high-precision filters can effectively remove tiny particles and impurities.

4. Extend the service life

The automatic cleaning mechanism reduces the risk of damage to the filter due to blockage and extends the service life of the equipment.

5. Energy-saving and environmentally friendly

Compared with traditional manual cleaning methods, automatic self-cleaning filters save a lot of water resources and energy consumption.

6. Easy to maintain

Equipment is usually designed to be modular for easy disassembly and maintenance.

Component

1. Drive motor: Provide power to drive the cleaning device to move.

2. Electronic control system: Controls the operation of the equipment, including starting and stopping the cleaning program.

3. Control pipeline: Responsible for conveying control signals and feedback equipment status.

4. Main Component: Connect the various components to ensure the correct flow of fluid.

5. Filter element assembly: The core filter part determines the filtration accuracy.

6. Cleaning device (such as stainless steel brush): Clean the surface of the filter screen.

7. Frame components: The structure that supports the entire device.

8. Drive shaft: Transmit power.

9. Import and export connection flange: Used to connect pipes.

Application scenario

The stable performance automatic self-cleaning filter is widely used in the following fields:

1. Industrial water. Steel mills, paper mills, chemical industry, food processing, etc.

2. Sewage treatment. Urban sewage and industrial wastewater treatment stations.

3. Heat exchanger protection. Prevents the efficiency of the heat exchanger from being degraded due to clogging.

4. Irrigation system. Agricultural irrigation water is filtered to prevent clogging of sprinklers.

5. Pretreatment of seawater desalination. Pretreatment of seawater on offshore platforms.

6. Circulating cooling water system. Protect the equipment in the cooling water system from damage due to the accumulation of impurities.

When selecting a stable performance automatic self-cleaning filter, factors such as fluid type, flow requirements, filtration accuracy, working pressure, working temperature, chemical compatibility, etc. need to be considered. There are a variety of brands and models available on the market. Users should choose the right equipment according to their own needs and technical parameters, and consider after-sales services and technical support.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
