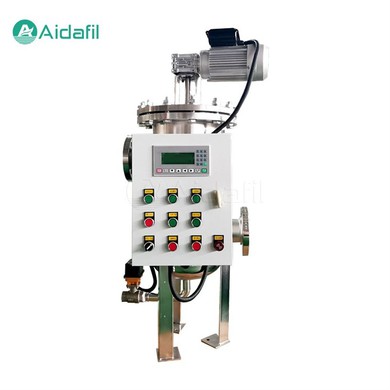

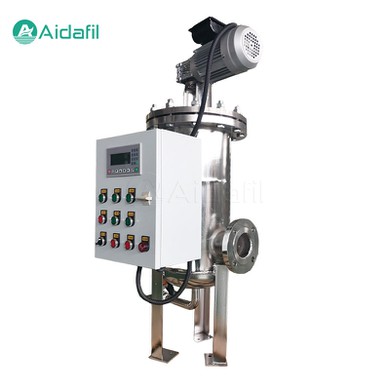

Easy Control Automatic Self-Cleaning Filter

The easy control automatic self-cleaning filters are designed to intercept impurities in water directly, effectively removing suspended solids, particles, and reducing turbidity. By doing so, these filters contribute to purifying water, minimizing system contamination, preventing the growth of bacteria and algae, as well as reducing corrosion. The precision and efficiency of these devices make them vital for maintaining water quality and safeguarding the proper functioning of other system equipment. The technology significantly reduces the need for manual cleaning and maintenance, reducing operational costs and improving efficiency.

Product Parameters

Model: DN50-DN700 (can be customized)

Power: 0.37-1.1KW

Accuracy: 10-3000μm

Maximum operating temperature : 80°C

Maximum flow : 20-3000m³/h

Minimum working pressure : 0.2MPa(g)

Maximum working pressure : 1.6MPa(g)

Uses: Tap water, domestic wastewater, chemical wastewater, river water, sea water and other filters

How Does It Work?

Water enters the self-cleaning filter through the inlet, where it passes through a filtration chamber. The filter uses a range of mesh filters to separate the impurities from the water, leaving only clean water to pass through. The self-cleaning mechanism of the filter constantly cleans the mesh filters, removing waste and restoring the filter's effectiveness.

The Easy Control Automatic Self-Cleaning Filter is designed with an advanced, intelligent system that automates the cleaning process. The system uses Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC) to automatically detect the level of sediment or waste buildup in the filter. Once the system detects that the filter needs cleaning, it sends a signal to the drain valve to initiate the cleaning process. This automatic self-cleaning process ensures that the filter remains effective in filtering water impurities.

Key Features and Capabilities

1. Intelligent Impurity Detection

The easy control automatic self-cleaning filter excels in its ability to accurately detect the degree of impurity buildup in the filter. The advanced sensors integrated into the system provide precise data, allowing for efficient and timely cleaning cycles.

2. Fully Automated Cleaning Process

One of the standout features of this filter is its complete automation. Once the system determines the need for cleaning, it signals the discharge valve to initiate the full purging of impurities. This automation not only enhances operational efficiency but also reduces the need for manual intervention.

3. Real-Time Monitoring and Control

Through the PLC and PAC components, the easy control automatic self-cleaning filter offers real-time monitoring and control capabilities. Operators can remotely access the system, track performance metrics, and make adjustments as needed, ensuring optimal filter operation.

4. Minimal Maintenance Requirements

Given its self-cleaning functionality, the easy control automatic self-cleaning filter requires minimal maintenance. This feature translates to cost savings and reduced downtime, making it a cost-effective solution for water treatment operations.

Applications and Benefits

1. Industrial Water Treatment

In industrial settings where water quality is crucial for various processes, the easy control automatic self-cleaning filter plays a pivotal role in ensuring the purity of water used in cooling systems, manufacturing processes, and more. By removing impurities effectively, it helps prevent equipment damage and maintain operational efficiency.

2. Municipal Water Supply

For municipal water treatment facilities, these filters offer a reliable means of purifying water before distribution to households and businesses. The automated cleaning process reduces the risk of clogging and ensures a continuous supply of clean water to the community.

3. Agriculture and Irrigation

In agricultural applications, where water quality directly impacts crop health, the easy control automatic self-cleaning filter can enhance irrigation systems by removing sediment and contaminants. This leads to improved crop yields and reduced maintenance costs for irrigation infrastructure.

Environmental Impact and Sustainability

The utilization of easy control automatic self-cleaning filters in water treatment processes contributes to environmental sustainability. By efficiently purifying water and reducing the need for chemical treatments, these filters help conserve water resources and minimize the ecological impact of industrial and municipal operations.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.

Why Choose Us

· Professional manufacturer with many years' experience

· Good quality with competitive price

· OEM & ODM are welcome

· Various payment items are acceptable

· Good service by experienced manager

AIDA Philosophy

1. Management Concept:

· Satisfy the customers' demand --- Touch customers, trust with our products and services

· Make employees happy --- Pursue higher material and spiritual happiness

2. Company Mission:

· Focus on customer needs, provide best filtering solution

· To be the lifelong partner with customers

3. Corporate Vision:

· Become a global purification leadership brand

4. Values:

· Customer: Pursue the ultimate experience, enjoy excellent quality

· Team: Trust, responsibility, growth, win-win

· Work: Simple, sincere, efficient, dedicated
