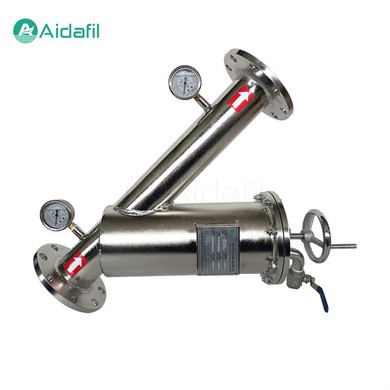

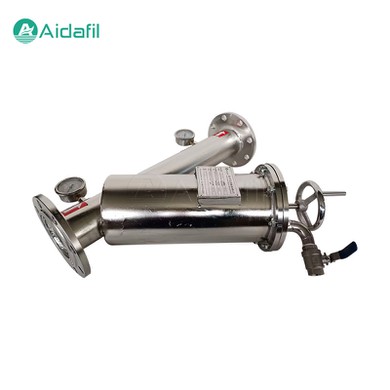

Simple-Structured Y-Type Filter

The Simple-Structured Y-Type Filter is a kind of high-efficiency filtration equipment, named because of its Y-shaped shape. It is mainly composed of cylinder body, filter basket, sewage valve, flange or threaded connector, etc., with simple structure but powerful function. Y-type filter can filter out various mechanical impurities in the fluid, such as rust, welding slag, sand, etc., thus protecting downstream pumps, valves, heat exchangers, meters and other equipment from wear and clogging.

Working Principle

When fluid flows into a Y-filter from the inlet, it first passes through a removable filter basket, which is usually made of stainless steel or other corrosion-resistant materials and has a certain pore size to intercept solid contaminants in the fluid. After the clean fluid passes through the filter basket, it flows to the outlet, while the intercepted impurities remain in the filter basket. Over time, the impurities in the filter basket will increase, resulting in an increase in the pressure difference between the inlet and outlet. At this time, the filter basket needs to be cleaned or replaced to restore the performance of the filter.

Specification

Features And Advantages

The Simple-Structured Y-Type Filter has a variety of features and advantages.

1. High-efficiency filtration. The Y-type filter can effectively remove solid impurities from the fluid, ensuring the cleanliness of the system and the normal operation of the equipment.

2. Easy to clean and maintain. Due to its unique design, the filter basket of the Y-type filter can be easily removed from the cylinder for easy cleaning and maintenance.

3. Wide applicability. The Y-type filter is suitable for filtering various liquids and gases, such as water, oil, steam, air, etc., and can be widely used in industrial, agricultural, and domestic water treatment fields.

4. Strong corrosion resistance. The Y-type filter is usually made of stainless steel or other corrosion-resistant materials, which can adapt to various corrosive environments.

5. Easy installation. The Y-type filter can be installed in a variety of ways, such as flange connections, threaded connections, etc. You can choose the appropriate installation method according to actual needs.

Application Field

The Simple-Structured Y-Type Filter can be used in many fields according to different needs.

1. Petrochemical industry. Used to filter lubricating oil, hydraulic oil, natural gas and other media, and to protect equipment and pipelines.

2. Pharmaceutical industry. Used for the preparation of pure water, filtration of pharmaceutical solutions, etc.

3. Food and beverage industry. Used for the filtration of alcohol, beverages, syrups, and other products.

4. Water treatment field. Used for municipal water supply, industrial circulating water, wastewater treatment, etc.

5. Refrigerated air conditioning system. Used for the filtration of refrigerants, cooling water, refrigerated oil, and other media.

Precautions For Use And Maintenance

The Y-type filter should be thoroughly cleaned before installation and confirmed to pass the non-destructive test.

2. During use, the pressure difference of the filter should be checked regularly. When the pressure difference exceeds a certain value, the filter basket should be cleaned or replaced in time.

3. When cleaning the filter basket, close the drain valve first, then open the bleed valve on the top of the filter to drain the pressure in the filter, and then remove the filter basket for cleaning.

4. After cleaning the filter basket, check for damage or corrosion. If so, replace it with a new one.

5. When the Y-type filter is not in use, the internal fluid should be drained and kept clean and dry.

Development Trend

With the advancement of technology and the diversification of market demand, Y-type filters are also constantly developing and improving. On the one hand, the material and structure of the filter have been optimized, such as the use of high-strength stainless steel material and precision welding process, which has improved the pressure resistance and corrosion resistance of the filter. On the other hand, the intelligent and automation level of the filter is also constantly improving. For example, through the installation of sensors such as differential pressure meters and flow meters, real-time monitoring and automatic control of the working status of the filter are realized.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
