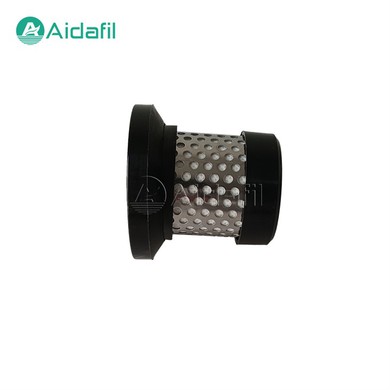

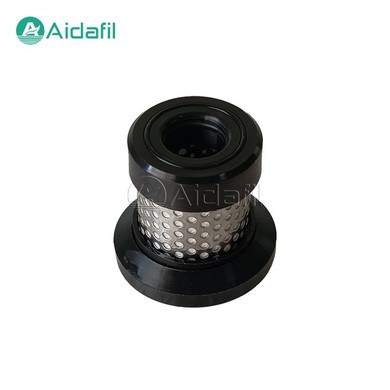

Air Compressor Inline Filter Cartridge FC/D-6

Air Compressor Inline Filter Cartridge FC/D-6, manufactured by our company, is a must-have for industries that rely on the use of compressed air. The filter cartridge is highly efficient and reliable in removing unwanted contaminants from compressed air.

Product Details

The Air Compressor Inline Filter Cartridge FC/D-6 functions by removing particles, moisture, oil vapor, and other contaminants from compressed air. It works by trapping contaminants on its surface, and as the filter cartridge becomes saturated, the pressure drop across the filter cartridge increases, indicating that it is time to replace the filter cartridge. The FC/D-6 filter cartridge has a maximum working pressure of 1.0 MPa and a temperature range of -10°C to 70°C. It has a filtration accuracy of 5um/1 um and a flow rate of up to 1.0 m3/min.

The Air Compressor Inline Filter Cartridge FC/D-6 has a unique multi-layer filtration design that provides high filtration efficiency and prevents clogging. It is also fitted with a drain valve that allows for easy removal of accumulated moisture and sediment.

The FC/D has ease of installation. This element can be easily inserted into many different types of compressed air filter housings, making it a versatile and convenient solution for your filtration needs. Additionally, it's designed to work effectively and quietly, ensuring that your system operates smoothly without added noise or disruptions.

The FC/D-6 filter cartridge is durable and long-lasting. Constructed with high-quality materials, this filter cartridge can withstand heavy usage and harsh operating conditions without showing signs of wear and tear. This means that you can rely on this filter to provide top-notch filtration over an extended period, helping to reduce maintenance costs and downtime. Importantly, this filter cartridge is also environmentally friendly. It's designed to be energy-efficient, thus reducing your carbon footprint and helping you to contribute to a cleaner, greener world. By choosing the FC/D-6 filter cartridge, you’ll not only improve the efficiency of your compressed air system, but you’ll also be making a positive impact on the environment.

The Air Compressor Inline Filter Cartridge FC/D-6 is used in a wide range of applications, including pneumatic equipment, air compressors, food and beverage production, pharmaceuticals, and in chemical industries.

We have a long-standing tradition of providing high-quality filtration solutions and has cooperated with several customers worldwide. The company has made extensive efforts to understand the unique needs and requirements of its customers, resulting in the development of innovative solutions that meet specific needs.

Specification

· Type: Compressed inline filter element

· Part No.: FC/D-6

· Filtration accuracy: 1μm

· Filtration efficiency: 99.99%

· Life cycle: > 6000 hours

· Function: Remove liquid/solid particle /oil in the compressed air

· Application: Air compressor

· Market: Global

Feature

· Cost-effective, save on maintenance and downtime costs

· Easy to install, operate and maintain
