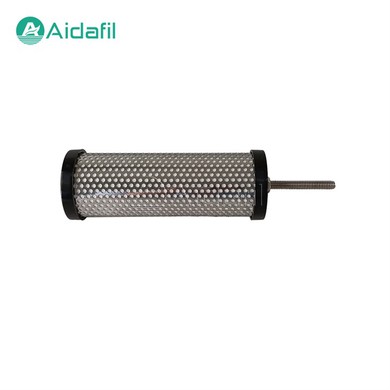

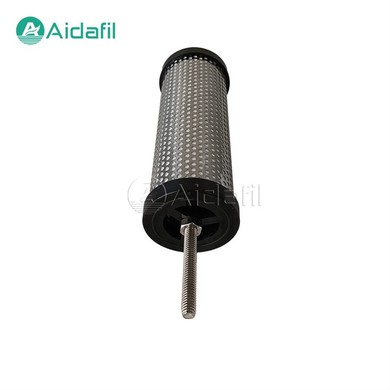

High Precision Compressed Air Cartridge E7-24-IN

The High Precision Compressed Air Cartridge E7-24-IN is a groundbreaking invention in the world of compressed air technology. This cartridge is designed to provide unrivaled precision, accuracy, and reliability in a compact package. This filter cartridge is built with the latest technology to ensure that it delivers high-precision performance consistently. With a maximum pressure of 10 bar, it provides excellent pressure stability, and the 24L capacity ensures longer service time.

What makes the high precision compressed air cartridge E7-24-IN stands out is its high precision. Its advanced design minimizes variations in pressure and flow rate, resulting in smoother, more consistent performance. This is especially important for applications like spray painting, where even minor variations can ruin a finish. The filter cartridge E7-24-IN is also incredibly easy to use. It screws into most standard compressed air systems, and its compact size makes it perfect for use in small spaces. Additionally, it’s lightweight and portable, so you can take it with you on the go.

This innovative product is perfect for a variety of applications, from powering air tools to inflating tires. One of our esteemed customers in the medical equipment industry has been using the E7-24-IN cartridge for several years. They have been impressed with its high-precision performance, reliability, and durability. Our customer also appreciates our commitment to quality and the environment, as the E7-24-IN is fully recyclable, making it environmentally friendly.

Advantage & Feature

· Heat temperature resistance

· Corrosion resistance

· Low airflow resistance

· High mechanical strength

· Better technology and best materials.

· Strong technical support and good command of manufacturing process

· Each piece is tested in accordance with high international standard.

· Easy to put up and replace

· Lead time is shorter.

Parameter

· Part Number: E7-24-IN

· Filter Type: Compressed inline filter

· Filtration Material: Glass fiber, filtration paper, activated carbon

· Filtration Efficiency: 99.9999%

· Change Interval: 12 months

· Working temperature: -10 ~ 80°C

· Flow rate (m³/min/0.7mpa): 3

· Filter diameter (mm): 60.5

· Filter height (mm): 167

· Filtration accuracy: 1μm

· Maximum remaining oil content: 1ppm w/w

Application

· Industrial manufacturing machine

· Food and beverage

· Automotive

· Electronics

· Pharmaceuticals

· Medical and dental usage

· Petroleum

· Metallurgy

FAQ

Q: Are you factory or trading company?

A: We’re factory with many years designing and manufacturing experiences.

Q: Will you provide samples?

A: Yes, but you need to pay for freight cost.

Q: Can i make the payment online?

A: Yes. You can direct make an order and pay it through Alibaba.

Q: Do you have warranty?

A: The filter’s warranty is one year. When it starts work, the lifetime depends on the working

environment (like pressure, temperature, and particle /dust content etc)

Q: May you do OEM Service?

A: Yes.
