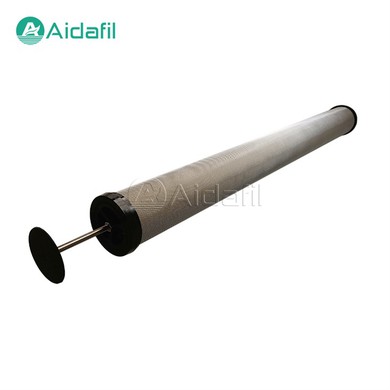

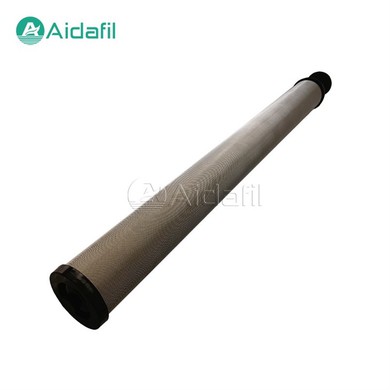

Precision Compressed Air Filter Element E9-48-IN

The precision compressed air filter element E9-48-IN is an essential component in the filtration system of any industry that uses compressed air. It is designed to remove impurities from the air supply, ensuring that the air is clean and safe for use. The E9-48-IN filter element is a high-performance filter element that offers superior filtration efficiency. Made from high-quality materials, it has excellent resistance to chemicals and solvents, making it suitable for use in harsh industrial environments. It is also lightweight and easy to install, which makes it a popular choice among various industries. The precision compressed air filter element E9-48-IN has air flow capacities of 141 CFM @ 100 PSIG and 169 CFM @ 150 PSIG. It has a maximum operating pressure of 232 PSIG. The filter element has a filtration rating of 0.01 microns, making it highly efficient in removing impurities and contaminants from the air supply.

Advantage & Feature

· Heat temperature resistance

· Corrosion resistance

· Low airflow resistance

· High mechanical strength

· Better technology and best materials.

· Strong technical support and good command of manufacturing process

· Each piece is tested in accordance with high international standard.

· Easy to put up and replace

· Lead time is shorter.

Parameter

· Part Number: E9-48-IN

· Filter Type: Compressed inline filter

· Filtration Material: Glass fiber, filtration paper, activated carbon

· Filtration Efficiency: 99.9999%

· Change Interval: 12 months

· Working temperature: -10 ~ 80°C

· Flow rate (m³/min/0.7mpa): 22

· Filter diameter (mm): 83

· Filter height (mm): 820

· Filtration accuracy: 3μm

· Maximum remaining oil content: 5ppm w/w

Application

· Industrial manufacturing machine

· Food and beverage

· Automotive

· Electronics

· Pharmaceuticals

· Medical and dental usage

· Petroleum

· Metallurgy

FAQ

Q: Are you factory or trading company?

A: We’re factory with many years designing and manufacturing experiences.

Q: Will you provide samples?

A: Yes, but you need to pay for freight cost.

Q: Can i make the payment online?

A: Yes. You can direct make an order and pay it through Alibaba.

Q: Do you have warranty?

A: The filter’s warranty is one year. When it starts work, the lifetime depends on the working

environment (like pressure, temperature, and particle /dust content etc)

Q: May you do OEM Service?

A: Yes.
