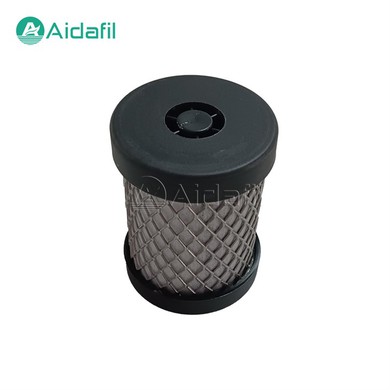

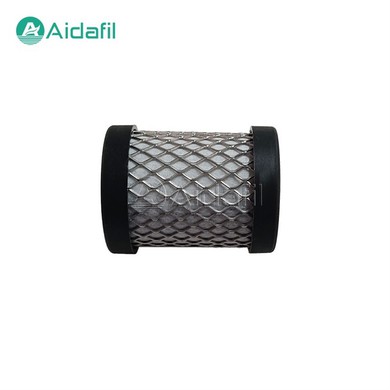

Reliable Air Compressor Inline Filter 1030 A

Reliable Air Compressor Inline Filter 1030 A serves as a revolutionary piece of equipment designed for compressed air systems to provide efficient and reliable filtration to compressed air systems. It has a filtration rating of 0.01 micron and a filtration efficiency up to 99.999%. Its unique design ensures it can filter out contaminators like dust, particles, and moisture, thereby providing clean, pure compressed air.

Product Details

The Reliable Air Compressor Inline Filter 1030 A is constructed using the highest quality materials to ensure it's durable and long-lasting and is made to remove impurities and contaminants from compressed air systems. It features a unique filter element that combines low resistance to air flow with high efficiency, ensuring that the compressed air systems receive clean, dry and oil-free air. The installation of this filter element is easy and straightforward, and it’s also easy to maintain.

The Reliable Air Compressor Inline Filter 1030 A is designed to operate in a compressed air system with a maximum pressure of up to 10 bar. It also has a maximum operating temperature of 80 degrees Celsius. The 1030 A filter element has high-performance and low differential pressure. It eliminates oil aerosols, bacteria, and virus particles up to 99.999%. At full capacity, it can filter out particles up to 0.01 micron in size, an impressive feat that proves the effectiveness of the 1030 A filter element, ensuring that even the smallest particles are removed from the compressed air system.

We value customer collaboration and always look for ways to work closely with customers to understand their specific needs. We provide technical support to customers and liaise with them to provide custom filtration solutions that meet their unique requirements.

Specification

Part No.: 1030 A

Filter type: Compressed inline filter element

Filtration accuracy (μm): 0.01

Residual oil content (ppm): 0.003

Flow rate (nm³/min): 0.5

Filter efficiency: 99.999%

Application: Air compressor

Certificate: ISO

Feature & Advantage

1. High efficiency filtration

2. Low pressure drop
