Slot Tubes
Product Details

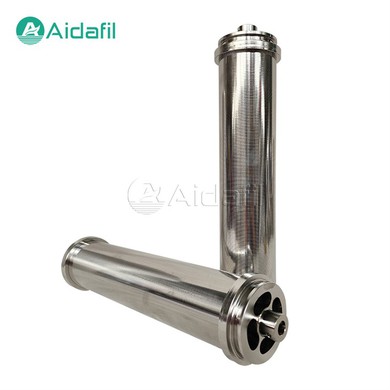

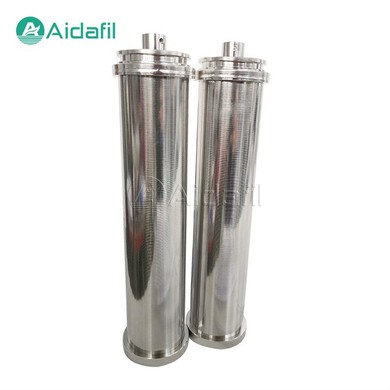

Slot tube, also called wedge wire filter element, is welded structure manufactured with surface profiles and support profiles. Support profiles serve as robs on the vertical direction and surface profiles spirally wound around the support robs. There are two filtering directions customers can choose based on their actual needs: from inside to outside or from outside to inside. This kind of filter elements has strong structure and good filteration performance.
Advantage
· High mechanical strength, great chemical and mechanical durability
· Anti-deformation
· Even filtration gap
· Little possibility of blockage, easy in cleaning and backwashing
· Corrosion resistance, rust-proof
· Long service life
Specification
· Filtration accuracy of 25-800μm.
· Outer diameter: 19-914m, continuous length up to 6 meters.
· Section diameter of common-used circular support rods is 2-6mm; width of common-used bar-type support rods is 1.5-4mm, and height is 6-40mm.
· Length of the flat filter wires can reach 1800mm, and the support rods can reach 3000mm.
· Material: stainless steel 302、304、304L、316、316L.
· Working temperature: high temperature resistance.
· Application fields: petrochemical industry, sewage treatment and flood system, mineral processing, paper making and food processing.
· Surface: smooth and bright.
Application
Mainly used for filtration, separation and dehydration of liquids, particles and powders in chemical industry, papermaking industry, mining industry, brewing industry and oil and gas industry, etc.
