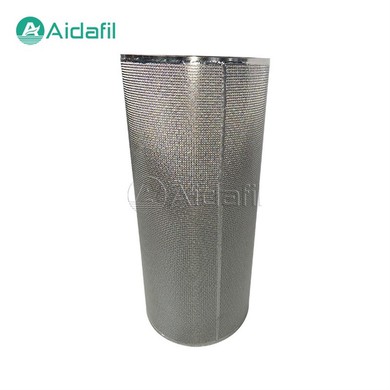

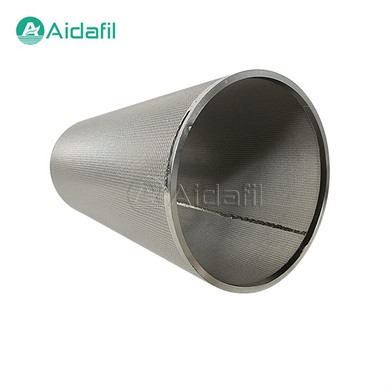

Sintered Filter Elements

Sintered filter elements serve as an ideal filtration material for occasions where the compressive strength is high and the filtration particle size is uniform. Generally, a five-layer structure is adopted in sintered filter elements: one protective layer, one precision control layer, one dispersed layer and two reinforcement layers respectively. The multi-layer sintered structure ensures the sintered filter elements boasts very high mechanical strength and great rigidity on the one hand and stable filtering accuracy on the other hand.

Product Features

1.High porosity and excellent penetration rate, low initial pressure difference, less pressure loss, fast velocity of flow, large flow rate, precise and uniform pore size, uniform fluid distribution, and good retention and purification effect;

2.Large sewage holding capacity, high filtration accuracy, slow pressure curve rise during use, and long replacement cycle;

3.Excellent temperature and corrosion resistance, ability to use for a long time in such complex environments as ultra-high temperature, rapid cooling and rapid heating, resistance to corrosion of nitric acid, alkali, organic solvents, and medicines;

4.High strength, stable precision in ultra-high pressure and differential pressure environment, no fibre shedding even if the liquid and gas are strongly washed and vibrated;

5.Wide range of filtration accuracy to meet various application requirements;

6.Produced by unique ultra-precision welding technology, and is firm and durable and has no release of fluid pollution;

7.Can be treated by backblow cleaning, backwash cleaning, ultrasonic cleaning, chemical method, online steam sterilization, etc.

8.Can be cleaned and regenerated, and can be used repeatedly after washing, with good economy.

Product Applications

For high-precision separation, filtration and purification of various gases and liquid media such as polymer melt, metal melt, food, medicine, wine, beverage, seasoning, hydraulic oil, lubricating oil, fuel oil, ink, cutting fluid, smoke exhaust, natural gas, petroleum liquefied gas, hydrogen, powder, battery liquid, glue, catalyst, air, water treatment and so on.

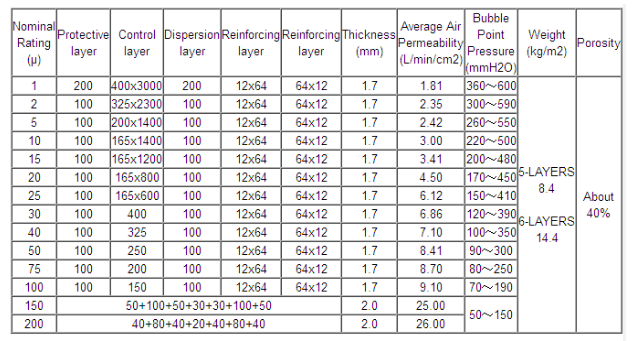

Product Parameter

Standard size: 500*1000mm, 600*1200mm, 1000*1000mm, 1000*1200mm

Filtering accuracy: 1μm - 300μm

Standard material：SUS304、SUS316L

Customized service available
