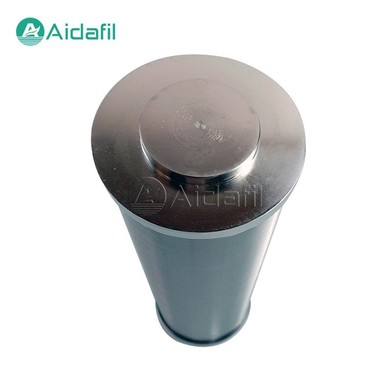

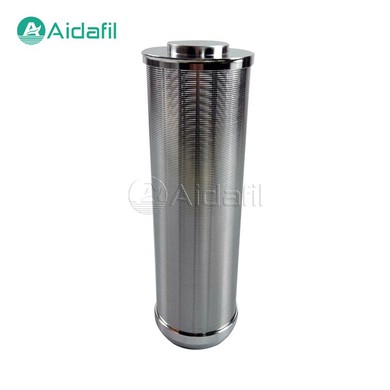

Wedge Wire Filter Cartridges

Wedge wire filter cartridges are made of V-shape profile wires and longitudinal support rods. These wires are fusion welded onto support rods which makes the filter cartridge has sturdy construction, good strength and strong corrosion resistance. The V-shaped wires wrap around the support rods. This structure allows the products to have more excellent pressure-resistant performance be more robust and work for a longer time. Types of external filtration or internal filtration can be chosed in light of the actual requirments of customers. Wedge wire filter cartridges are used in sieving of petroleum, chemical industry, pharmaceutics, food and beverage, metallurgy and coal, also can be used in filtration of water treatment.

We provide customized service for customers on specifications and shapes to meet customers actual requirments.

Specification

· Application: welding net, knit mesh, conveyor and filters;

· Type: 205B, 202B, E300, E200, 304(L), 316(L);

· Wire diameter: φ0.8-8.0mm;

· Surface: bright;

· Filtration accuracy of 25-800μm;
· Outer diameter: 19-914m, continuous length up to 6 meters.
· The section diameter of the common-used circular support rod is 2-6mm; the width of the common-used bar-type support rod is 1.5-4mm, and the height is 6-40mm.
· the length of the flat filter wire can reach 1800mm, and the support rod can reach 3000mm.
· common-used products shape: square, rectangular, circular flat filter plate, filter basket, filter element.

Product fearure

· Maximum design flexibility.

· High mechanical strength, can withstand high differential pressure.

· Even filter gap, can form a relatively uniform filter cake and is conducive to backwashing.

· Easy to clean for reuse.

· Pressure resistance, temperature resistance, anti-aging, anti-corrosion.

· Smooth surface, no edge and corner, great backwashing eddect.

· Easy to install and operate, long-time serive life.

· Low operation cost and maintenance cost.

· Diverse filtering directions, from inside to outside or from outside to inside, can be adjusted according to customers' needs.

Product application

Widely used in coarse filtration and fine filtration projects in water treatment in power oil wells, natural gas wells, water wells, chemical industry, mining, papermaking, environmental protection, metallurgy industry, food, sand control, decoration and other industries.
