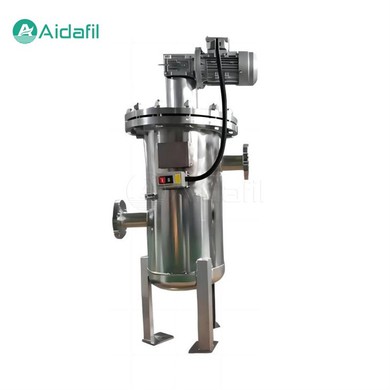

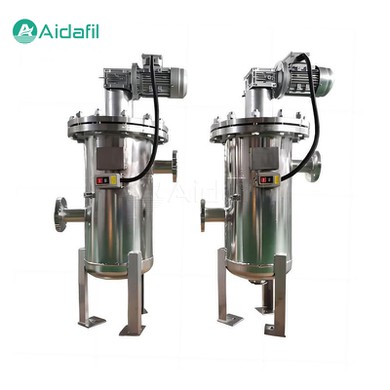

High Efficiency Automatic Self Cleaning Filter Machine

Name: High Efficiency Automatic Self Cleaning Filter Machine
Brand: AIDA
SKU: 239286318

The high efficiency automatic self cleaning filter machine intercepts impurities through the built-in filter screen. When the impurities on the filter screen accumulate to a certain extent, the device will automatically start the cleaning program.

Product Details

The high efficiency automatic self cleaning filter machine intercepts impurities through the built-in filter screen. It automatically detects the degree of impurity deposition on the filter screen through an intelligent control system, and automatically starts the cleaning process when a predetermined pressure difference is reached, ensuring a continuous and efficient filtration effect. This automated cleaning mechanism not only reduces the need for manual maintenance, but also improves the operating efficiency and reliability of the system.

Features

1. Automated cleaning. The automatic self cleaning filter machine is equipped with an intelligent control system, such as a PLC or PAC, which can monitor the filtration status in real time and automatically start the cleaning cycle as needed.

2. Low pressure loss design. The design of the self-cleaning filter ensures minimal pressure loss during the cleaning process, thus maintaining the efficient operation of the system.

3. Multi-domain applications. Self-cleaning filters can be used in a wide range of industries, including industry, agriculture, municipal power, electronics, medicine, and food, to meet a wide range of water quality requirements.

4. Energy-saving and environmentally friendly. Self-cleaning filters help users save energy and water resources through optimized cleaning cycles and efficient filtration performance.

5. High degree of automation. The self-cleaning filter has a high degree of automation, which can monitor the working status of the filter, and the system provides uninterrupted water supply when cleaning and discharging sewage.

6. Easy maintenance. Self-cleaning filters are designed for low maintenance, but it is necessary to regularly check the wear of the cleaning brush and filter and the stability of the electrical control system.

Parameters

Single unit flow	50-1200M³/H, larger flow can be realized by multiple single units in parallel
Minimum working pressure	0.2Mpa
Maximum working pressure	1.0/1.6/2.5/4.0Mpa
Maximum operating temperature	80°C
Filtration accuracy	130~3500 microns
Control mode	Differential pressure, timing or manual
Cleaning time	60s
Cleaning mechanism speed	14-20rpm
Cleaning pressure loss	0.01Mpa
Control voltage	AC 220V
Rated operating voltage	Three-phase, AC220V /380V, 50HZ

How to achieve automatic cleaning

1. Differential pressure control. The self-cleaning filter monitors the impurity deposition on the filter screen in real time through the built-in intelligent control system (such as PLC or PAC). When the pressure difference between the inside and outside of the filter screen reaches the preset value, the system will automatically trigger the cleaning process.

2. Start the sewage valve. During the cleaning process, the sewage valve is opened first, causing part of the water flow to be discharged, reducing the pressure inside the filter. This step creates conditions for the sewage suction process.

3. Suction cleaning. Due to the pressure reduction, the suction pipe starts to absorb the dirt on the inner wall of the filter screen by using the negative pressure. At the same time, the motor-driven suction pipe makes a spiral motion along the axial direction to thoroughly clean the entire filter surface.

4. End the cleaning. After the cleaning is completed, the sewage valve is closed, the system returns to normal working pressure, and the filter continues to perform the filtration task. The entire cleaning process generally lasts for tens of seconds without affecting the normal water supply.

Application

1. Industrial manufacturing

- Cooling water treatment. In the industrial production process, many equipment requires cooling water to maintain the normal operating temperature of mechanical equipment. The high efficiency automatic self cleaning filter machine can effectively remove suspended solids and particles in the cooling water, ensuring the efficient operation of the cooling system.

- Process water treatment. In the chemical, petroleum and other processing industries, the quality of process water is directly related to product quality. The high efficiency automatic self cleaning filter machine ensures the stability of the process and the quality of the product by removing impurities from the water.

2. Environmental treatment

- Wastewater treatment. The high efficiency automatic self cleaning filter machine plays an important role in municipal and industrial wastewater treatment. It helps remove suspended solids and other contaminants from wastewater, allowing it to be safely discharged or further treated.

-Seawater desalination. In the desalination process, the high efficiency automatic self cleaning filter machine is used in the pretreatment stage to remove impurities and suspended solids from seawater to protect the operating efficiency and lifespan of subsequent desalination equipment.

3. Agricultural irrigation

- Water purification. For agricultural irrigation, especially drip irrigation and sprinkler irrigation systems, the use of the high efficiency automatic self cleaning filter machine can effectively remove sediment and other particles from the water source, prevent clogging, improve irrigation efficiency and crop survival.

4. Electricity industry

- Power station water. In thermal power plants, nuclear power plants, etc., the high efficiency automatic self cleaning filter machines are used to treat boiler feed water and circulating cooling water to ensure that water quality meets requirements and avoid equipment failures caused by water quality problems.

5. Food and Medicine

- Production water treatment. In food and beverage production, as well as in the pharmaceutical industry, there are strict requirements for water quality. The high efficiency automatic self cleaning filter machine can provide stable and hygienic water quality, ensuring product safety and quality.

6. Construction industry

- Water system protection. In large buildings, water in central air conditioning and heating systems needs to be strictly filtered to prevent the accumulation of dirt and microorganisms inside the system, and the high efficiency automatic self cleaning filter machine plays a key role here.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
