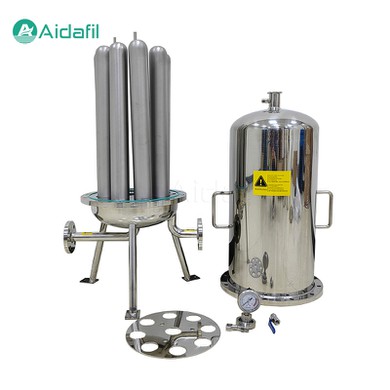

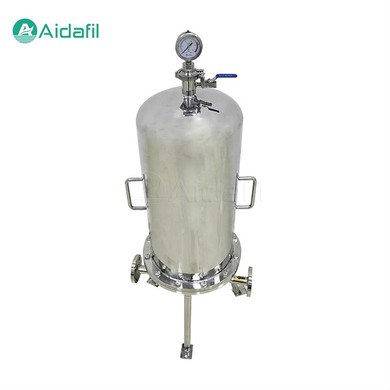

High Precision Filtering Titanium Rod Filter

The high precision filtering titanium rod filter is a kind of filter equipment that uses titanium powder sintered filter element as the internal filter medium. It has the advantages of high precision, high temperature resistance, corrosion resistance and high mechanical strength. It is widely used in medicine, food and beverage, chemical industry and water treatment industries.

The high precision filtering titanium rod filter works based on the physical filtration mechanism, and the liquid is filtered through the titanium powder sintered filter element. When the liquid to be filtered passes through the filter cartridge, impurities such as solid particles and suspended solids are trapped in the surface or internal pores of the filter cartridge, while the clean liquid flows out through the filter cartridge.

Structural features

1. Filter material

The filter element of the high precision filtering titanium rod filter is sintered with titanium powder, which has excellent corrosion resistance and mechanical strength. The titanium material itself has good biocompatibility and chemical stability, and can be used in a large pH range without interacting with microorganisms, ensuring the purity and safety of the filtration process.

2. Housing material

Titanium rod filter housing is usually made of 316L or 304 stainless steel, which has good corrosion resistance and high temperature resistance, and can meet the high standards of equipment materials in the pharmaceutical industry. At the same time, the stainless steel housing is also easy to clean and sterilize, and meets GMP specifications.

3. Sealed structure

In order to ensure the tightness and safety of the filtration process, the titanium rod filter adopts a reliable sealing structure. The sealing ring is usually made of corrosion-resistant and high-temperature resistant materials, such as fluororubber or silicone rubber, which can effectively prevent leakage and pollution.

Performance advantage

1. High precision filtering

Titanium rod filter has high precision filtration effect, which can effectively remove tiny particles and suspended solids in the liquid. The pore size distribution of the filter element is narrow and the separation efficiency is high, which can meet the requirements of different industries for filtration accuracy.

2. High temperature resistance

The titanium rod filter can operate normally at higher temperatures, and its filter element can withstand a wet temperature of 200°C, making it suitable for some processes that require filtration under high temperature conditions.

3. Corrosion resistance

Due to the excellent corrosion resistance of titanium materials, titanium rod filters can be used for a long time in corrosive environments such as acids and alkalis, making them less susceptible to chemical attack.

4. High mechanical strength

The filter element of the titanium rod filter has high mechanical strength, can withstand large pressure and impact force, and is not easy to deform and break. This makes the titanium rod filter perform well in operations such as high pressure filtration and backwashing.

Parameters

Application field

1. Pharmaceutical industry

Titanium rod filters are mainly used in the filtration of medicines in the pharmaceutical industry, such as liquid medicines, injections, etc. Its high precision and high hygiene standards ensure the quality and safety of medicines.

2. Food and beverage industry

In the food and beverage industry, titanium rod filters are used for the filtration of fruit juices, beverages, edible oils, etc., to remove impurities and suspended solids and improve the taste and quality of products.

3. Chemical industry

Titanium rod filters are used in the chemical industry to filter various chemical substances, such as solvents, acid and alkali solutions, etc. Its corrosion resistance ensures the stable operation of the filter in harsh environments.

4. Water treatment industry

In the water treatment industry, titanium rod filters are used for water purification to remove suspended solids, sediment, and other impurities from the water and improve the clarity of the water.

Use and maintenance

1. Installation and debugging

When installing the titanium rod filter, it should be installed correctly according to the requirements of the manual to ensure a good seal between the filter element and the shell. During the commissioning process, the pressure and flow rate of the filter should be adjusted according to the actual process conditions to achieve the best filtration effect.

2. Cleaning and regeneration

After the titanium rod filter is used for a period of time, certain impurities may accumulate on the surface of the filter element, which affects the filtration effect. At this time, cleaning or regeneration is required. Cleaning methods include backwashing, ultrasonic cleaning, etc. The specific method should be selected according to the material and degree of pollution of the filter element. Regeneration refers to the restoration of the filtration performance of the filter element by chemical or physical methods, such as pickling, alkali washing, etc.

3. Replace the filter element

When the filtration performance of the filter element is significantly reduced or cannot be restored by cleaning and regeneration, a new filter element needs to be replaced. When replacing the filter element, care should be taken to choose products with the same specifications and materials as the original filter element to ensure the normal operation of the filter.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
