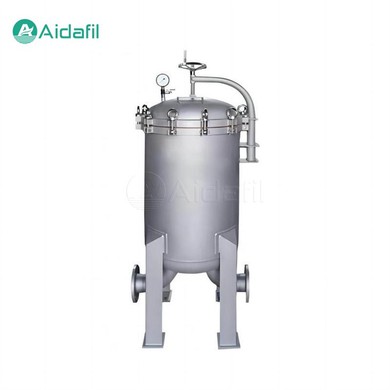

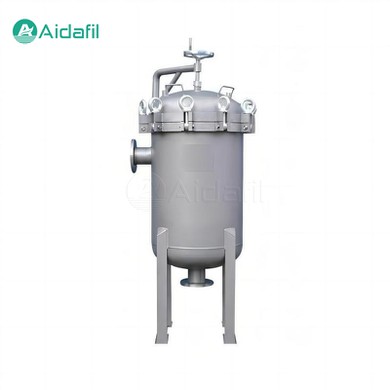

High Strength Security Filter

The high strength security filter removes fine particulate matter in the water treatment system to meet the requirements for the quality of the incoming water in the subsequent process. The housing is usually made of stainless steel, and the internal filter element can be made of PP meltblown, wire fired, folded, titanium filter element, activated carbon filter element and other tubular filter elements.

The high strength security filter is widely used in fine chemical, oil, medicine, water treatment and other fields, mainly for solid-liquid separation, improving effluent quality, and protecting subsequent equipment from particulate damage.

Function

1. Remove fine particulate matter. The high strength security filter can remove fine particulate matter in water, such as suspended matter, colloids, microorganisms, bacteria, etc., thereby improving the clarity of water quality. This is essential to protect subsequent equipment, such as reverse osmosis membranes, ion exchange resins, etc., from being contaminated and blocked by particulate matter.

2. Protect critical equipment. By removing particulate matter that can cause equipment damage or performance degradation, the high strength security filter help extend the lifespan of critical equipment and reduce repair and replacement costs.

3. Improve system efficiency. Clean water quality can reduce friction and resistance within the system, thus improving the efficiency and performance of the entire water treatment system.

Parameters

Characteristics

The characteristics of high strength security filters mainly include the following aspects:

1. Material diversity

The filter element of the security filter can be made of a variety of materials, such as PP meltblown, thread fired, folded, titanium filter element, activated carbon filter element, etc., to meet the filtration requirements of different fluids.

2. High filtration accuracy

The security filter can effectively remove suspended solids, impurities, rust and other substances in the liquid, and the filtration accuracy is generally less than 5 micrometers.

3. High slag loading capacity

The unique internal deep mesh structure makes the filter element have a high slag load capacity.

4. High pressure resistance

It can withstand high filtration pressure and is suitable for working in various pressure environments.

5. Small size and large filtration area

The external size of the security filter is small, but the filtration area is large, the resistance is small, and the service life is long.

6. Corrosion resistance

Resistant to acid and alkali chemical solvents, it can be used for filtration equipment in the chemical industry.

7. High strength and high temperature resistance

The filter element is not easily deformed and can withstand a certain high temperature environment.

8. Economy

The price is low, the operating cost is low, and the filter cleaning is easy to operate.

9. Wide range of applications

Applicable to pharmaceutical, food, chemical, environmental protection, water treatment and other industrial fields.

10. Easy to maintain

The filter element can be replaced, and the filter has a long service life, making it easy to maintain and maintain.

Attention

When using a high strength security filter, you need to pay attention to the following points:

1. Choose the right filter

Select the appropriate filter type according to the characteristics of the filter medium and filtration requirements, such as PP meltblown filter, wire wound filter, folding filter, etc.

2. Regularly replace the filter element

The filter element will gradually clog during the filtration process, affecting the filtration effect. Therefore, it is necessary to check and replace the filter element regularly to maintain the normal operation of the filter.

3. Control work pressure

Avoid exceeding the working pressure range of the filter to avoid damaging the filter element or the filter itself.

4. Prevent pollution

When replacing the filter element or cleaning the filter, care should be taken to prevent impurities and contaminants from entering the filter.

5. Install correctly

Make sure the filter is properly installed and sealed to prevent leakage.

6. Monitor the filtering effect

Regularly check the filtered water quality to ensure that the filter is functioning properly.

7. Avoid overuse

Do not wait until the filter element is completely blocked before replacing it, so as not to affect the filtration effect and increase energy consumption.

8. Follow the operating procedures

Follow the manufacturer's usage and maintenance guidelines to ensure the safe and effective operation of the filter.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
