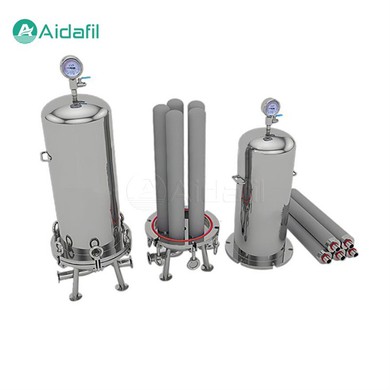

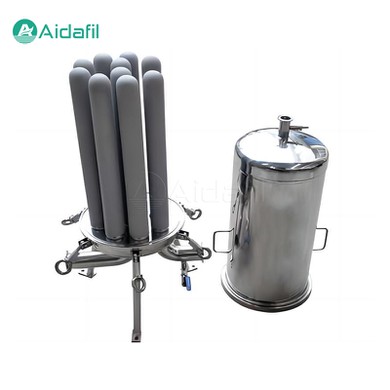

High Temperature Resistance Titanium Rod Filter

The high temperature resistance titanium rod filter marks an efficient and durable filtration equipment, mainly composed of hollow tubular filter element and shell made of titanium metal powder sintered at high temperature. Titanium rod filter has the advantages of high precision, high temperature resistance, corrosion resistance and high mechanical strength, and is widely used in chemical, pharmaceutical, food, environmental protection and other fields for coarse filtration or intermediate filtration.

Parameters

Filter material and structure

The filter element of the high temperature resistance titanium rod filter is made of titanium metal powder sintered at high temperature, which has excellent corrosion resistance, especially in harsh environments such as acidic, alkaline, and salt water. Titanium metal has low biocompatibility and is suitable for medical and other fields. The filter element adopts a hollow tubular structure with uniform inner diameter, large filtration area and large flux, which can meet the needs of different occasions.

Filtration accuracy and range

The filtration accuracy of the high temperature resistance titanium rod filter can reach about 0.45 to 100 microns, which can effectively remove impurities in water, including a series of heavy metals such as mercury, lead, cadmium, zinc, iron, manganese, chromium, strontium, radium, and a series of polymer compounds such as arsenic, hydride, sulfide, and residual chlorine. The filtration range is wide and suitable for the needs of different industries.

Shell materials and standards

The shell material of the high temperature resistance titanium rod filter is usually 316L stainless steel or 304 stainless steel. These two materials have excellent corrosion resistance and can meet the requirements of different media. The shell has high processing accuracy, smooth surface and no burrs to ensure the stable operation of the filter. At the same time, the shell meets GMP standards and is suitable for medical and other fields.

Cleaning and reuse of filter elements

The filter element of the high temperature resistance titanium rod filter can be cleaned by rinsing or acid-alkali soaking, which is convenient for cleaning and can be used repeatedly. In practical applications, according to the nature of the medium and the requirements of filtration accuracy, the filter element is cleaned regularly to maintain the filtration effect. This greatly reduces the cost of using the filter and improves economic benefits.

Application field

The high temperature resistance titanium rod filter is widely used in the following fields:

1. Chemical industry. Used for the purification of liquids and gases to remove impurities and ensure product quality.

2. Medicine. Used for the purification of raw materials in the pharmaceutical process, the purification of pharmaceutical solutions, and the sterilization of biological products, in line with GMP standards.

3. Food. Used for the clarification of fruit juices and beverages, the purification of vinegar, the refinement of condiments, etc., in line with food safety standards.

4. Environmental protection. Used for wastewater treatment to remove pollutants such as heavy metals and organic matter, meeting discharge standards.

5. Electronics. Used in the preparation of high-purity water to remove impurities such as ions and particles to ensure product performance.

6. Water treatment. Used for drinking water purification to remove suspended solids, microorganisms, organic matter, etc., to ensure water quality safety.

Installation and use precautions

1. Check before installation. Before installing the titanium rod filter, carefully check whether the appearance of the filter is intact and whether the seals are installed in place.

2. Select the appropriate filtration accuracy. Select the appropriate titanium rod diameter and length according to actual needs to ensure the desired filtration effect.

3. Regular cleaning and replacement. In order to ensure the performance of the filter and prolong the service life, the filter should be cleaned and replaced regularly. Appropriate cleaning agents should be used when cleaning, and tools such as hard brushes that may damage the surface of the titanium rod should be avoided.

4. Prevent excessive pressure. During use, avoid applying excessive pressure to the filter to avoid damaging the filter structure or affecting the filtration effect.

5. Storage conditions. Unused titanium rod filters should be stored in a dry, ventilated place to avoid moisture or erosion by other chemicals.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
